    CNC A Rotary 4th Axis MT2 Tailstock 65mm K12-100mm 4 Jaw Chuck Dividing Head

    Ask Lasest Price
    Brand Name : Rattm Motor
    Model Number : K12-100mm
    Certification : CE CCC
    Price : $208-210.3
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    CNC A Rotary 4th Axis MT2 Tailstock 65mm K12-100mm 4 Jaw Chuck Dividing Head

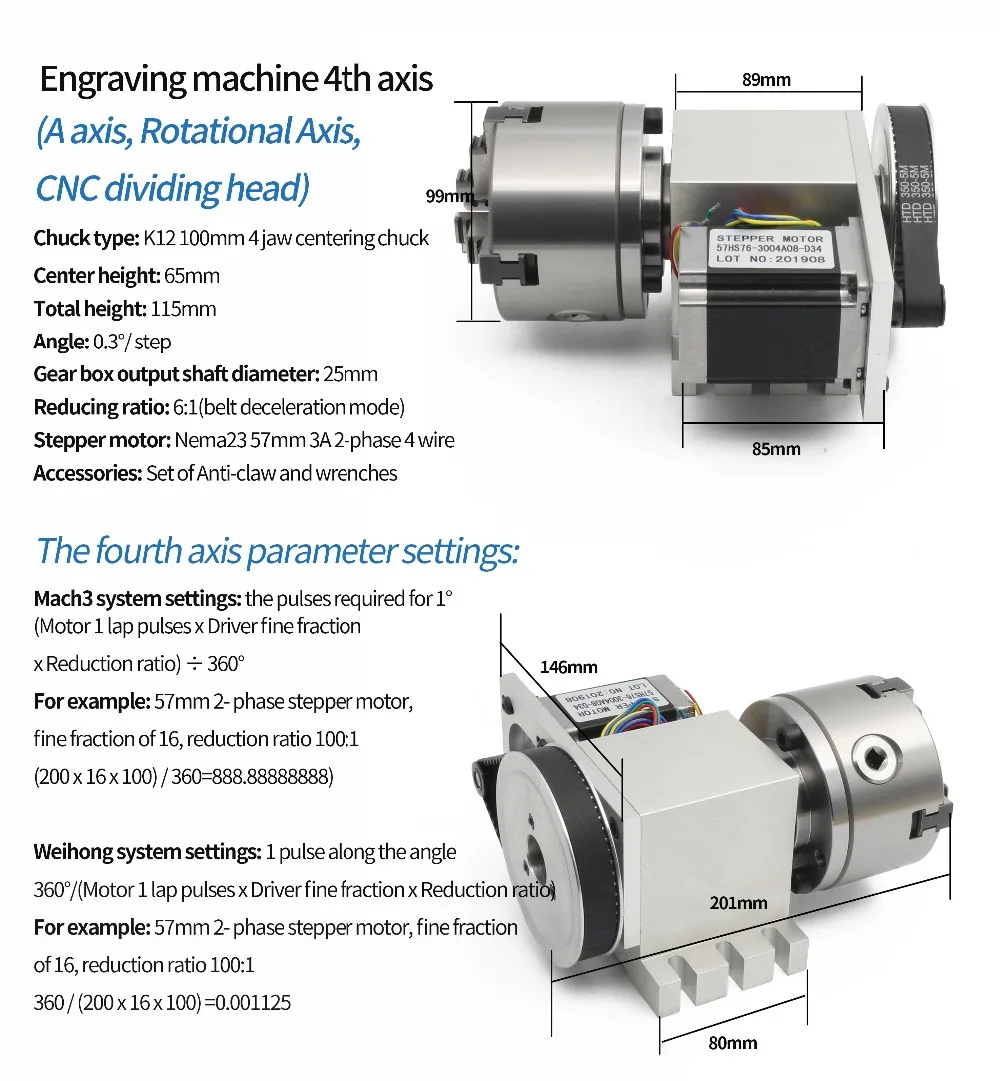

    CNC A Rotary 4th Fourth Axis K12-100mm 4 jaw chuck dividing head with 65mm MT2 Tailstock Nema 23 Stepper Motor + Driver

      • Chuck type:K12 100mm 4 jaw centering chuck

        Center height:65mm

        Total height:115mm

        Angle:0.3°/ step

        Gear box output shaft diameter:25mm

        Reducing ratio:6:1(belt deceleration mode)

        Stepper motor:Nema23 57mm 3A 2-phase 4 wire

        Accessories:Set of Anti-claw and wrenches

        The fourth axis parameter settings:

        Mach3 system settings:the pulses required for 1°

        (Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

        For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

        (200 x 16 x 100) / 360=888.88888888)

        Weihong system settings:1 pulse along the angle

        360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

        For example:57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 100:1

        360 / (200 x 16 x 100) =0.001125

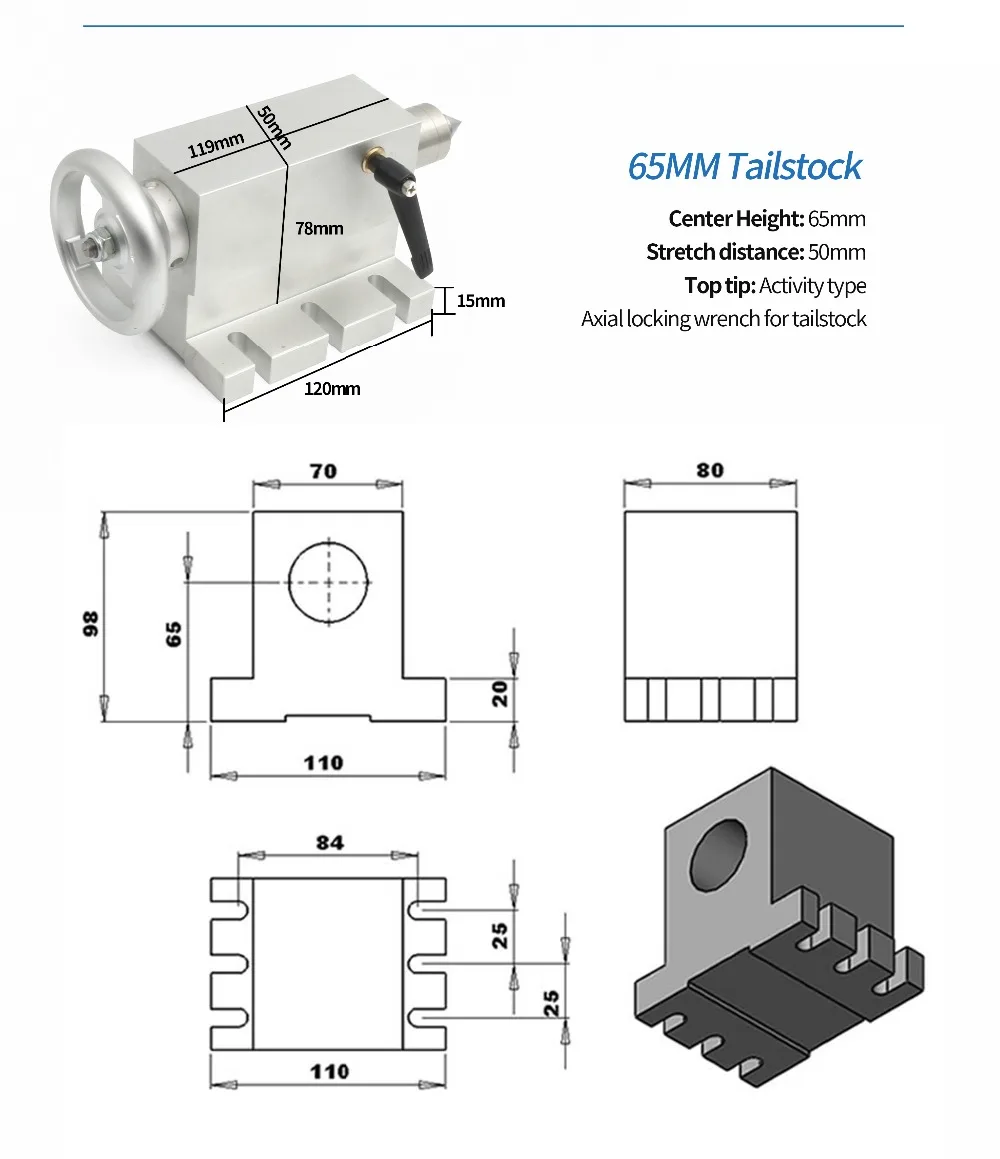

        Tailstock type:

        Center Height: 65mm

        Stretch distance: 50mm

        Top tip: Activity type

        Axial locking wrench for tailstock

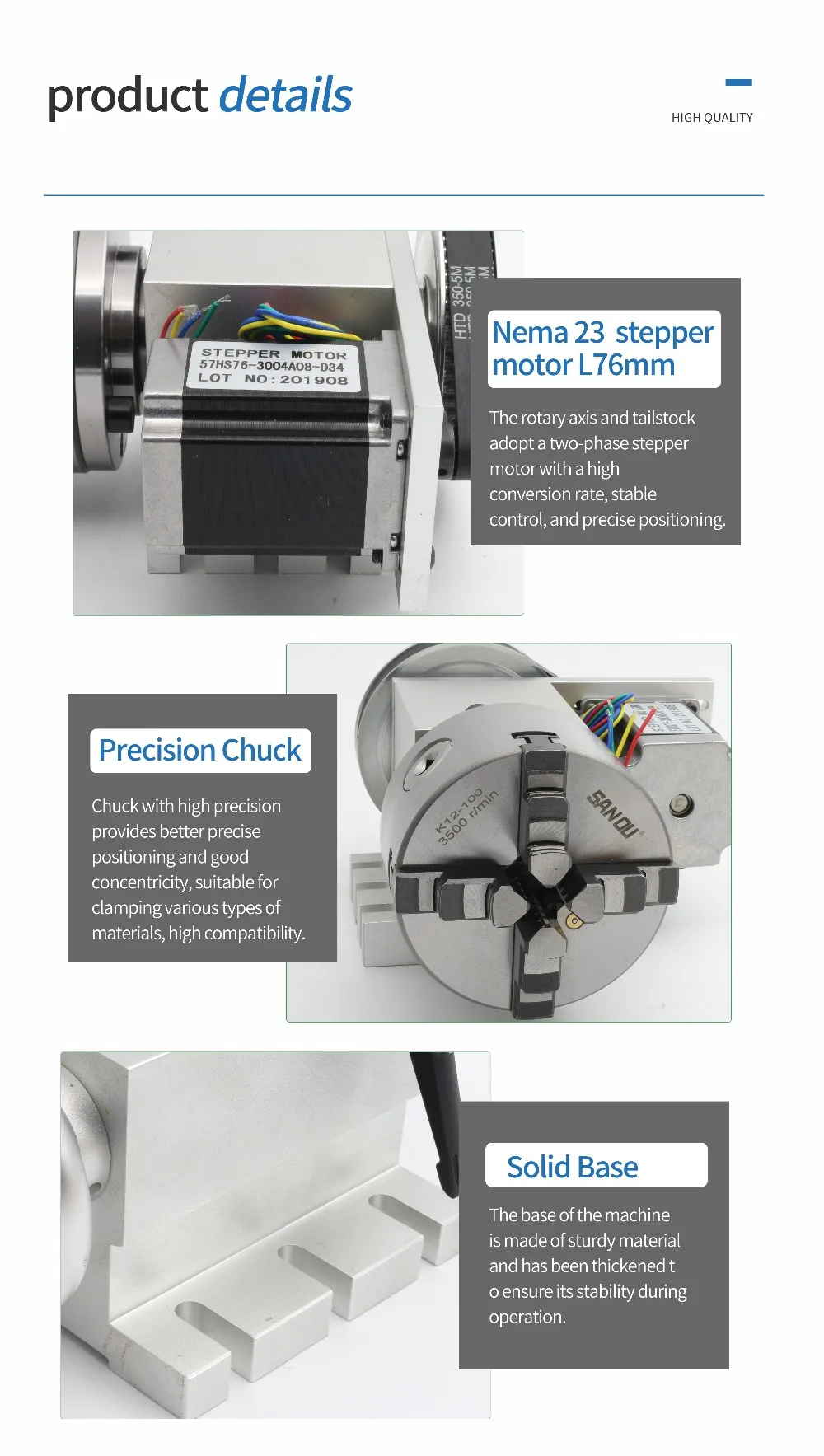

      • Stepper Motor:

        Nema 23 stepper motor L76mm

        Shaft Diameter: 8 mm

        Shaft length: 25.5mm

        Step Angle:1.8

        Current: 3A

        Voltage: 4.2V

        Temperature Rise: 80 c max

        Ambient Temperature: -20 c--+50 c

        Phase No. : 2HP

        Insulation Resistance: 100MOhm(500V DC)

        Holding Torque: 18kg.cm
