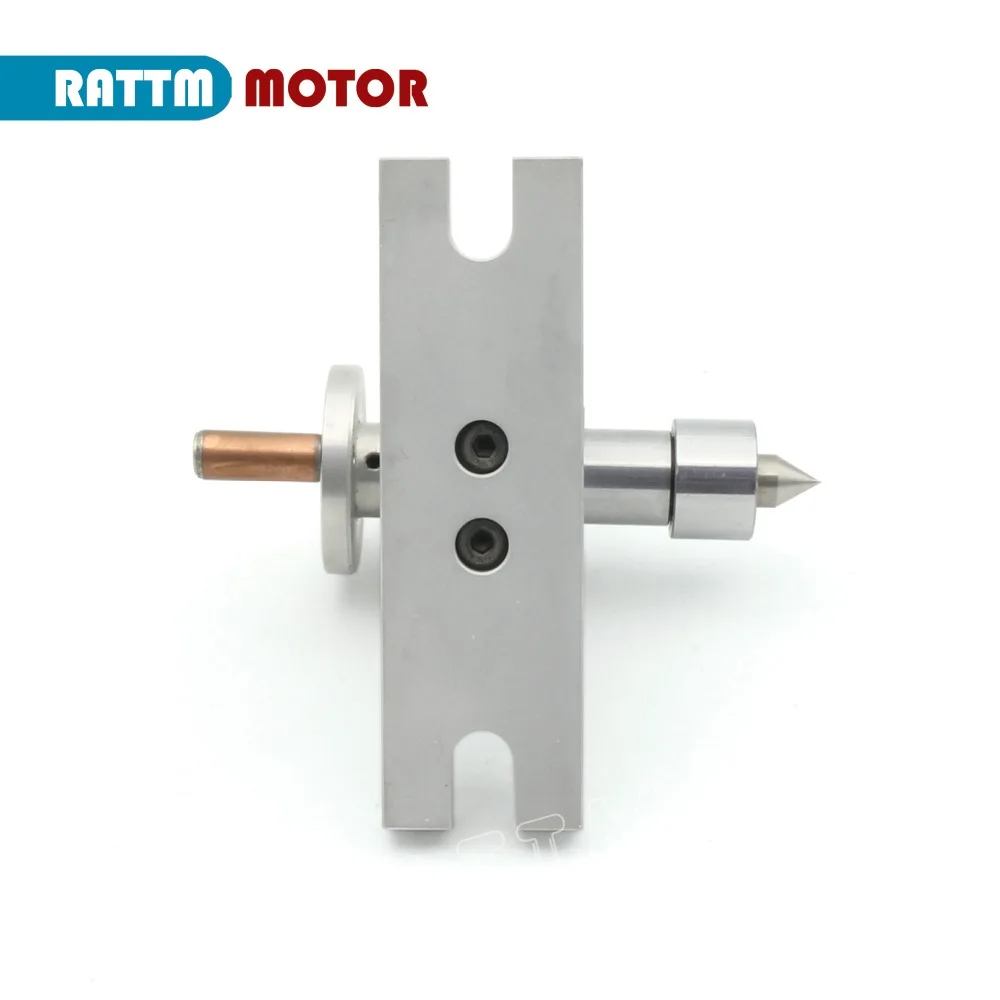

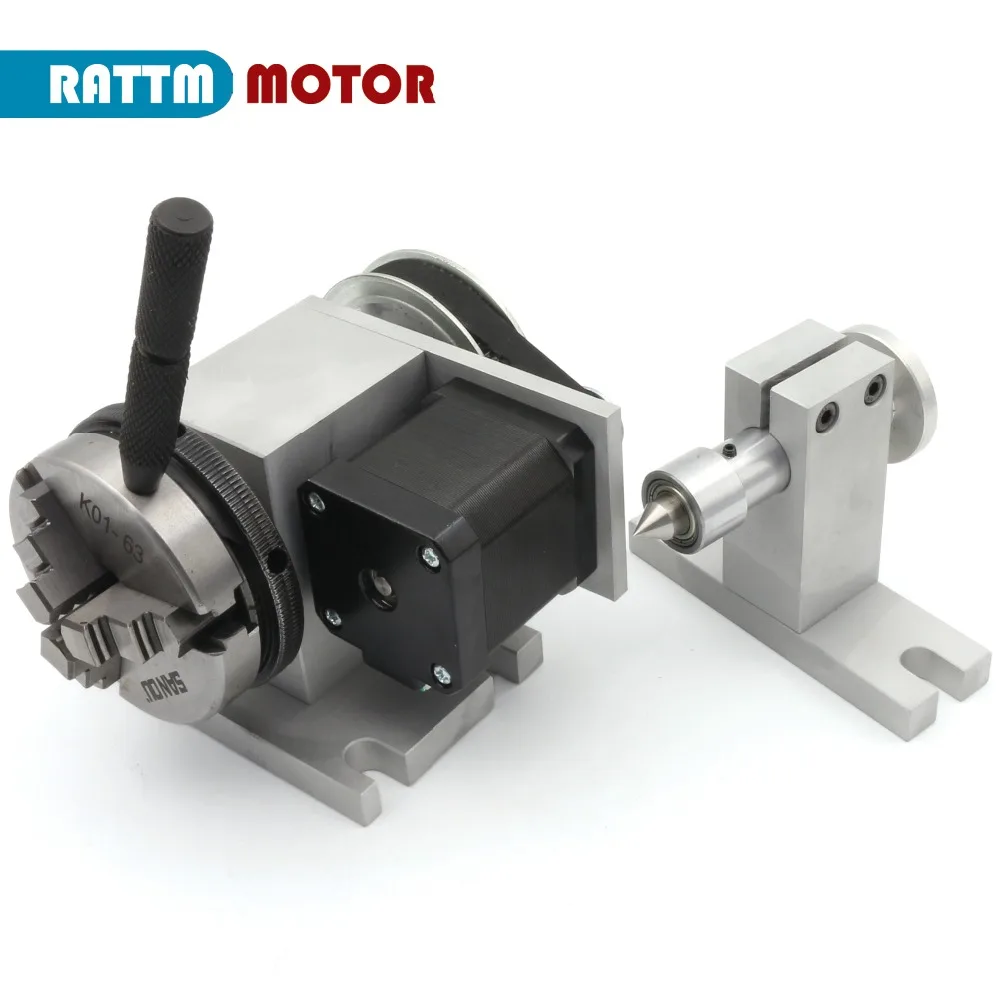

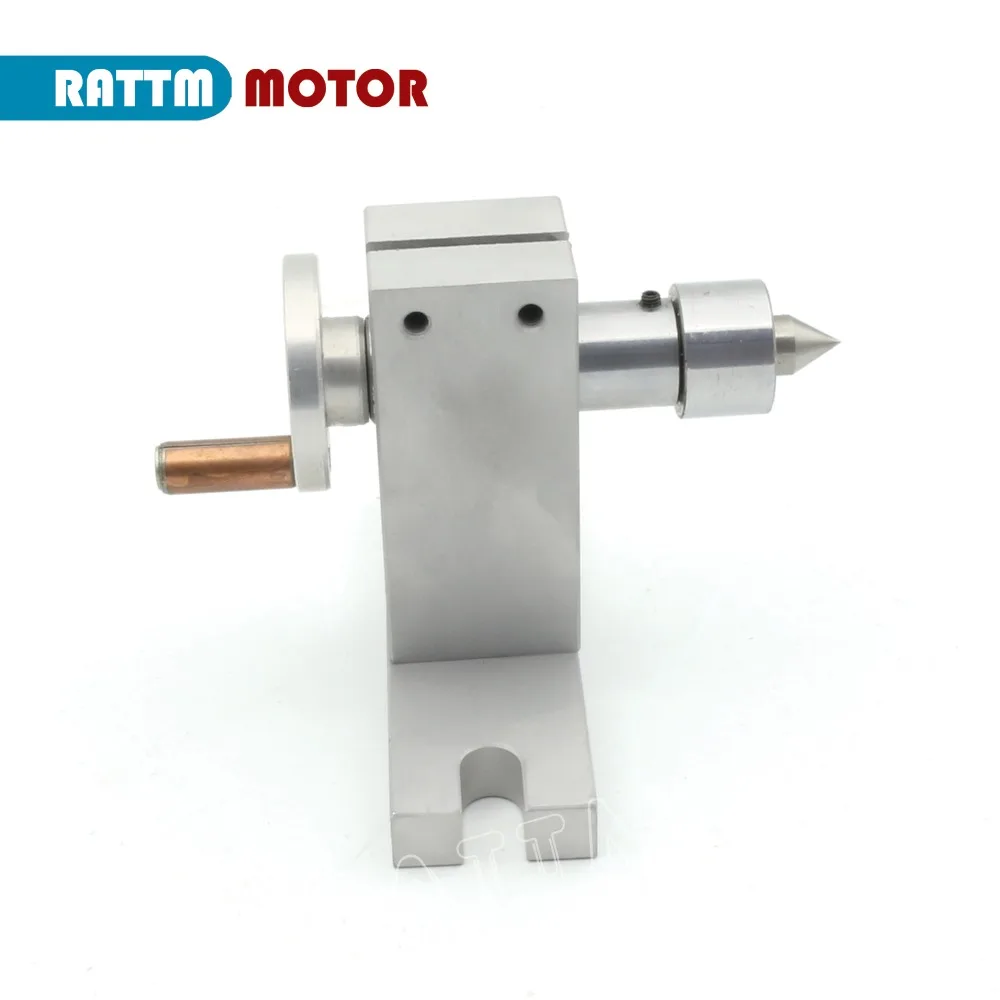

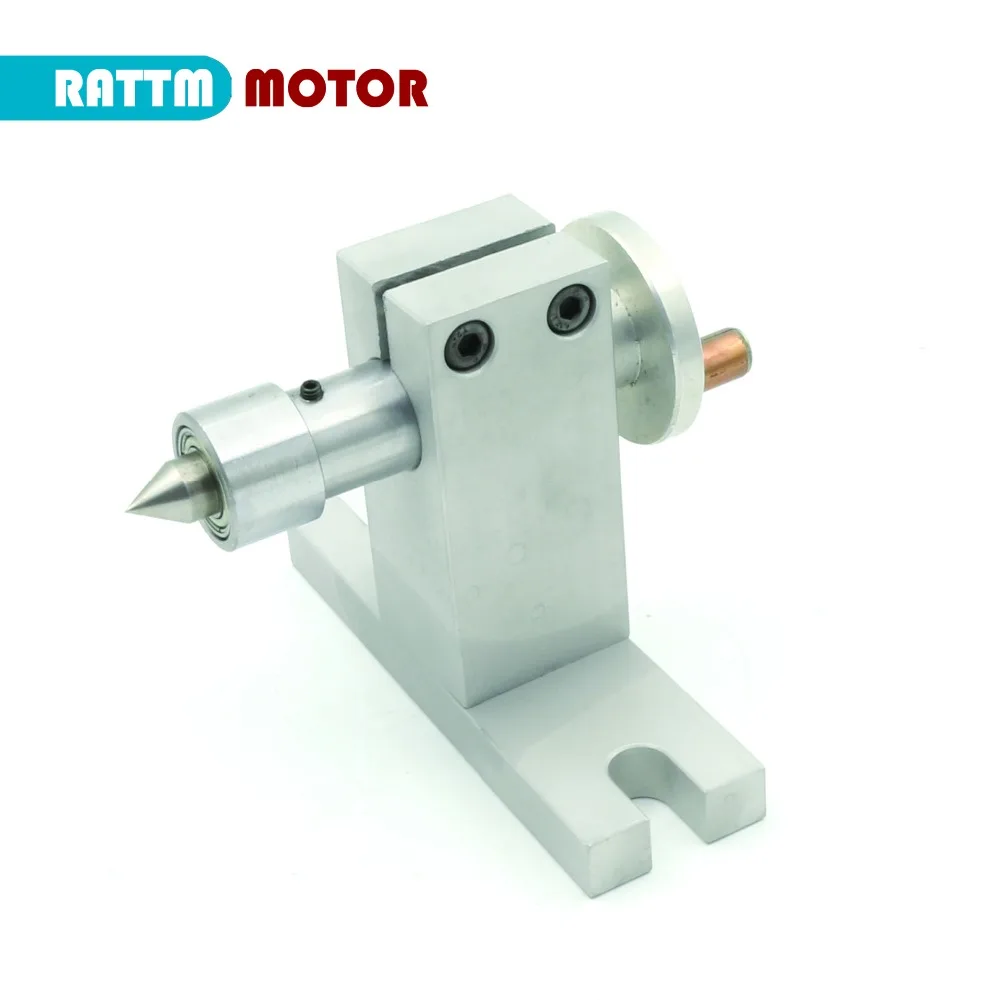

    4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck

    Ask Lasest Price
    Brand Name : Rattm Motor
    Model Number : K11-65mm
    Certification : CE CCC
    Price : $114.3-118.6
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck

    CNC Fourth 4th A Rotary Axis K11-65mm K12-65mm With 3 4 Jaws Chuck With Tailstock For Lathe Accessories

    4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck

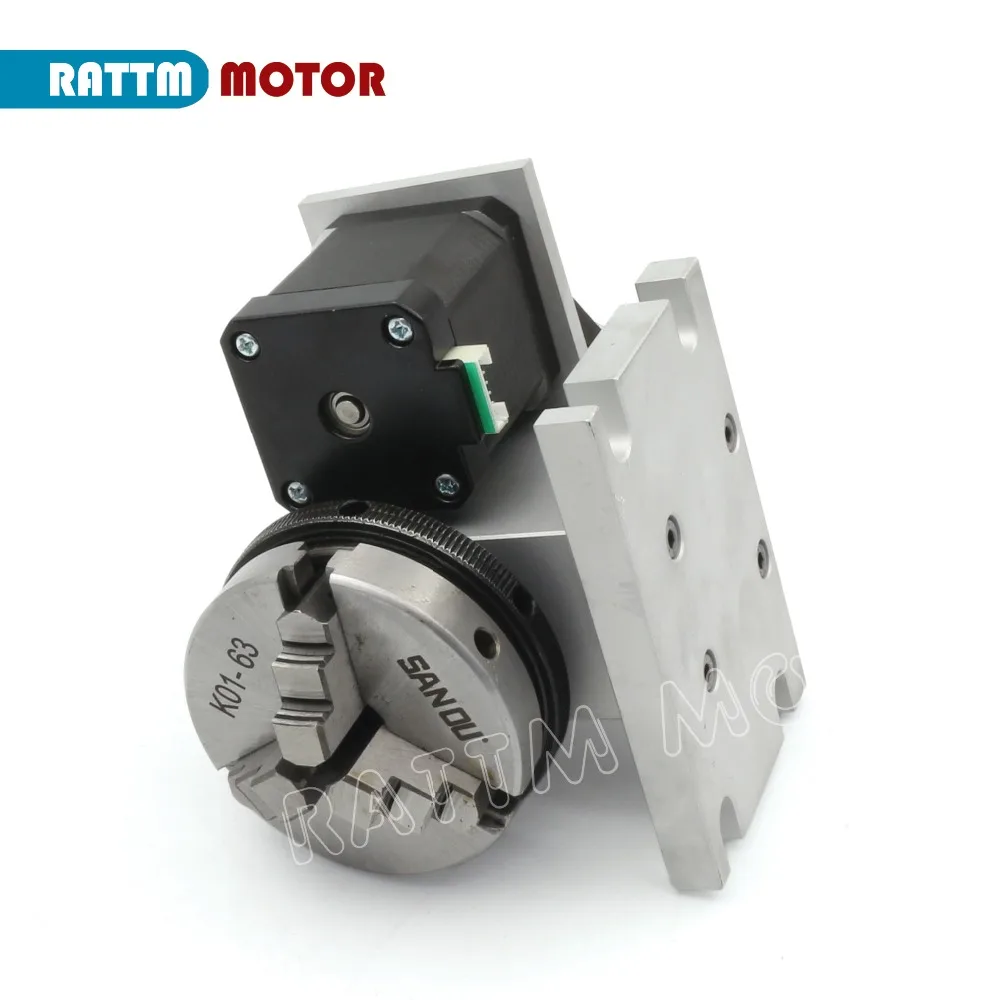

    Engraving machine 4th axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox

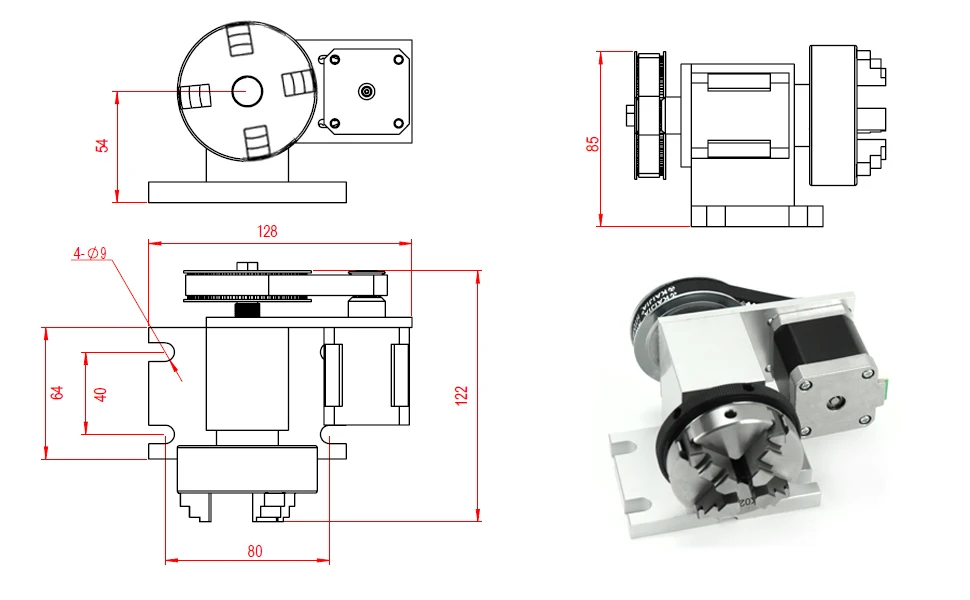

    Chuck type: K11-65mm or K12-65mm

    Center height: 44mm

    Total height: 85mm

    Angle: 0.3°/ step

    Reducing ratio:4:1(belt deceleration mode)

    Stepper motor: Nema17 2-phase 4 wire

    Accessories: Set of Anti-claw and wrenches


    The fourth axis parameter settings:

    Mach3 system settings: the pulses required for 1°

    (Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°

    For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1

    (200 x 16 x 6) / 360=53.3333)


    Weihong system settings: 1 pulse along the angle

    360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)

    For example: 57mm 2- phase stepper motor, fine fraction of 16, reduction ratio 6:1

    360 / (200 x 16 x 6) =0.01875


    4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck4th A Rotary Axis CNC Lathe Tailstock K11-65mm K12-65mm With 3 4 Jaws Chuck
