    CNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With Chuck

    Ask Lasest Price
    Brand Name : Rattm Motor
    Model Number : TRNC90-A10-C10
    Certification : CE CCC
    Price : $633-645
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    CNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With Chuck

    CNC Rotary 4th Fourth A Axis C Axis Dividing Index Head Harmonic Gearbox Ratio 10:1 With Chuck

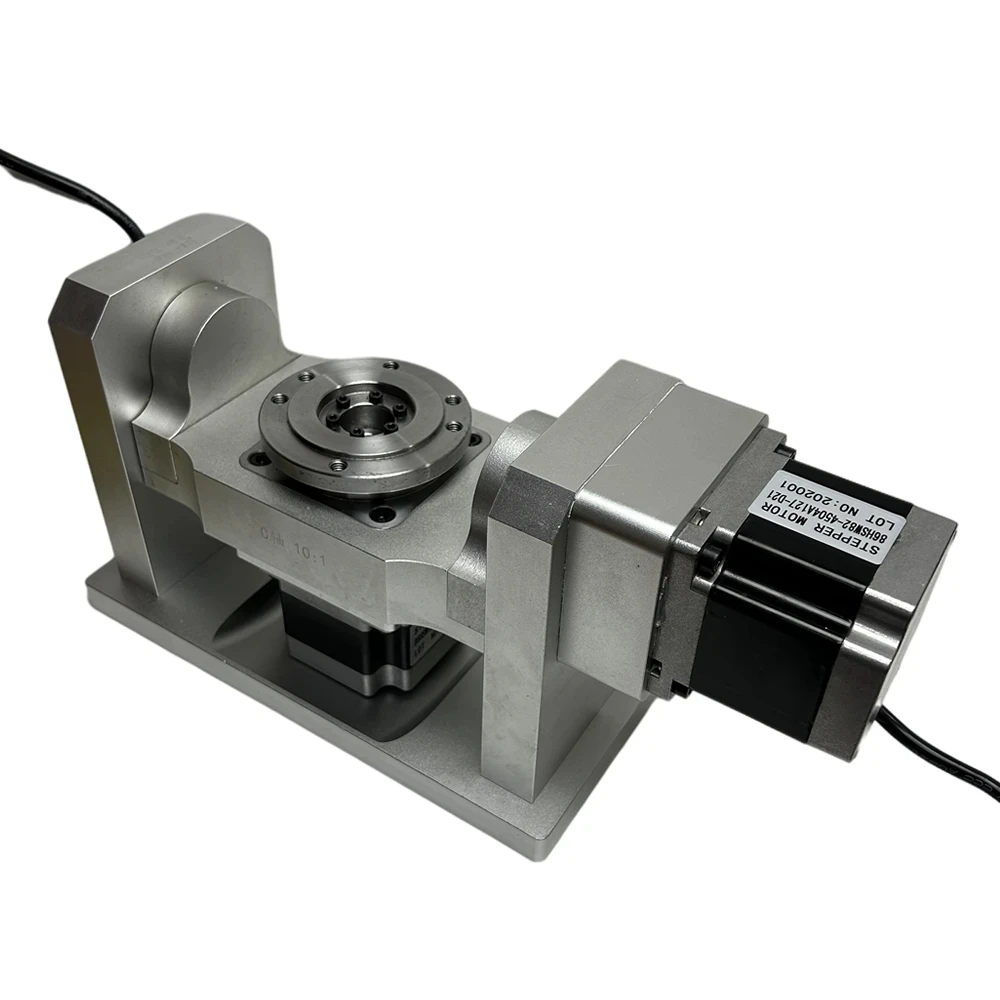

    Product show:


    Model: TRNC90-A10-C10

    Center height: 150mm

    Bench Diameter: 100mm

    4th Speed reducing ratio: 10:1

    5th Speed reducing ratio: 10:1

    The fourth axis (A axis) reduction ratio: 10: 1 (Nema34 two phase 4-wire 4.5A stepper motor)

    The fifth axis (C axis) reduction ratio: 10: 1 (Nema34 two phase 4-wire 4.5A stepper motor)

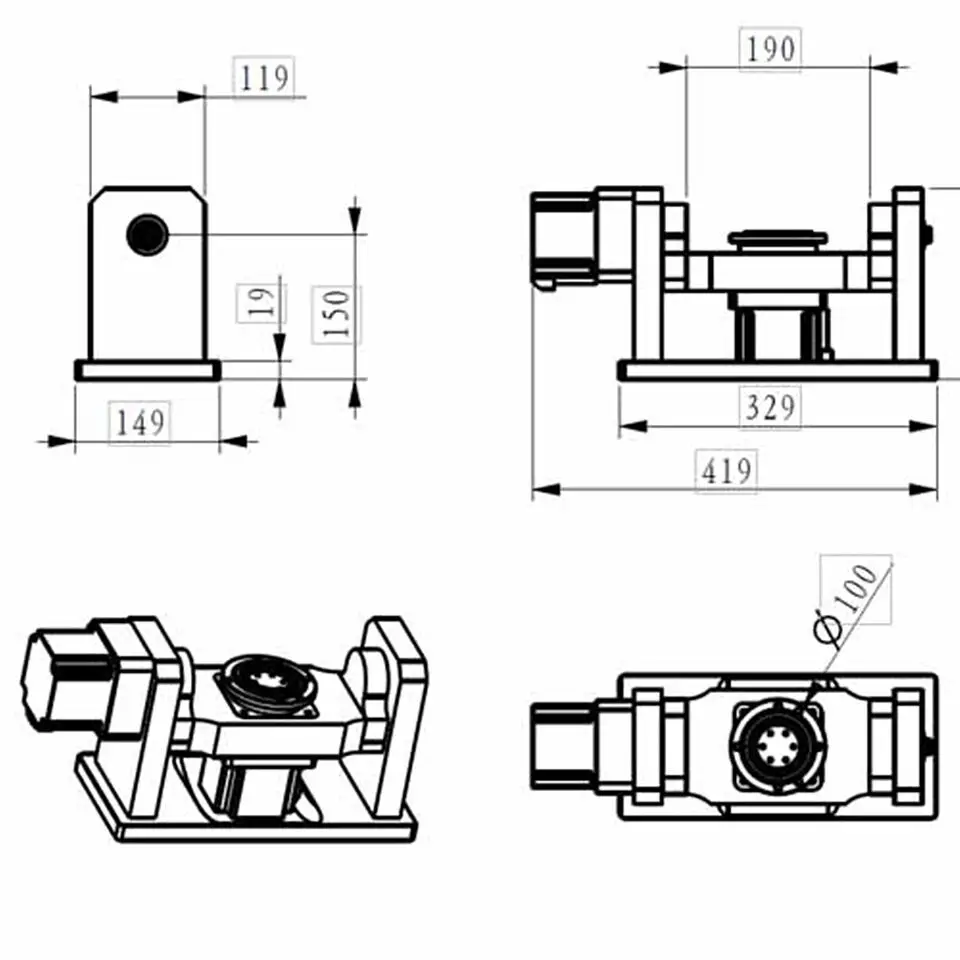

    Size: 412MMx149MMx198MM

    Weight: 20KG


    CNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With ChuckCNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With ChuckCNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With ChuckCNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With ChuckCNC Rotary 4th A Axis C Axis Dividing Index Head Harmonic Gearbox With Chuck
