    BS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw Chuck

    Ask Lasest Price
    Brand Name : Rattm Motor
    Model Number : BS0
    Certification : CE CCC
    Price : $258.6-261.3
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

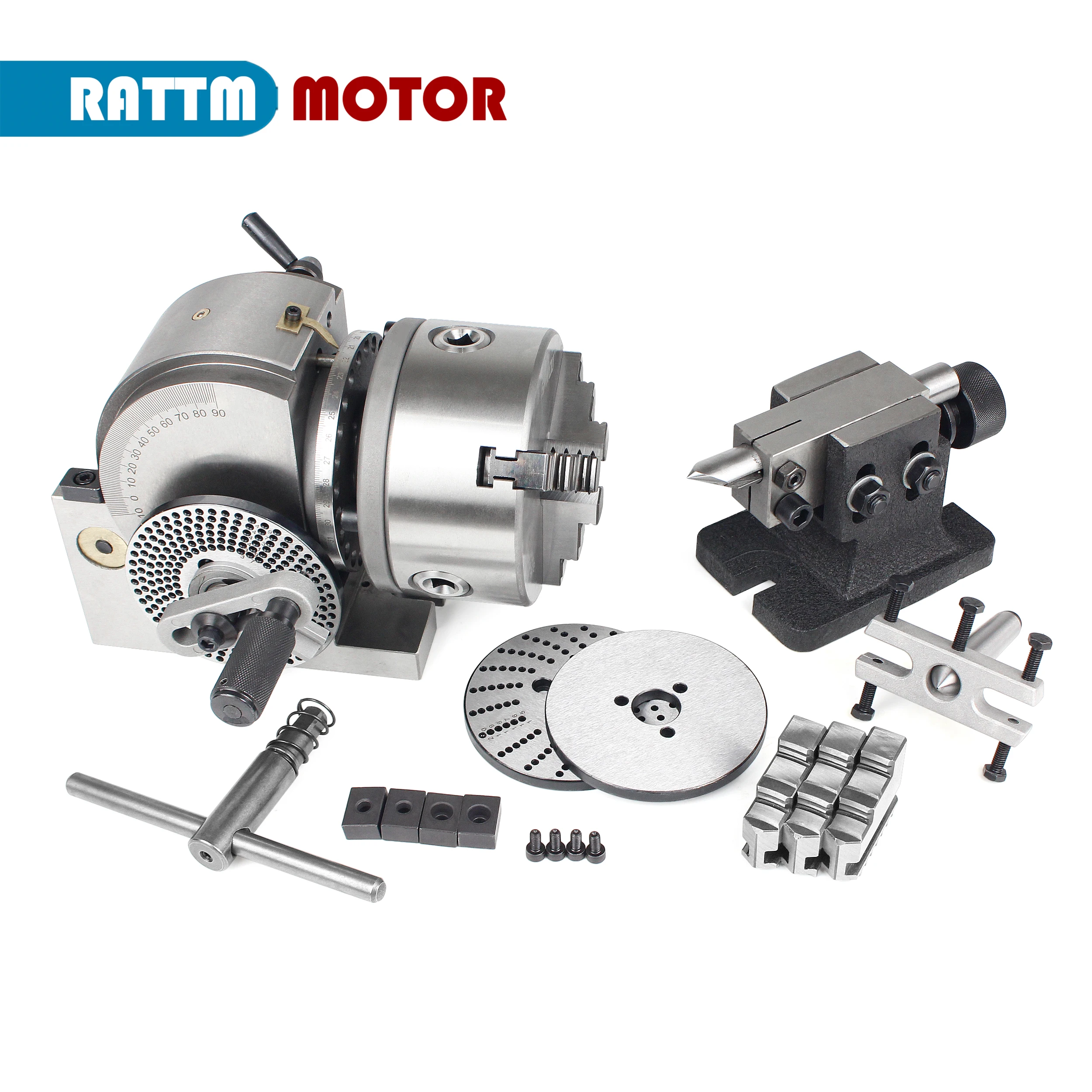

    BS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw Chuck

    BS0 CNC Dividing Head Adjustable Headstock Rotary Axis Table Indexer 125mm 4.92" 3 Jaw Chuck With Tailstock

    Package description:


    • 【Adjustable Angle】The head of the indexing head can be tilted at an angle of -10° to 90°, so it can handle workpieces of different sizes by clamping the workpiece to the required angle.


    • 【Direct and indirect Indexing Plates】BS0-type indexing centers are short-answer universal indexing centers and can be used for direct and indirect indexing methods. A plate diving plate with 24 notches gives direct divisions of 2, 3, 4, 6, 8, 12 and 24; By indirect indexing (worm gear ratio 1:40) all divisions up to 50. indirect indexing plate with 18 circles of holes 15-49.


    • 【3 Jaw 125mm Self-Centering Chuck】Internal jaw---Clamping range: 2.5-40mm, Internal jaw jamming range: 38-125mm; External jaw---Clamping range: 30-110mm; Max Speed: 3000R/min. Iit can self-center to clamp or hold workpieces of various shapes such as circular, triangular, hexagonal, etc. for various machining operations.


    • 【Solid Cast Iron Construction】Using high-quality production technology, made of high-strength FC30 cast iron, suitable for milling machines and other special machines, such as drill presses, grinders, and boring machines for simple split cutting, ideal for long-term use.


    • 【Function Introduction】 The universal indexing head divides the workpiece clamped between the center or the chuck into any angle, and the circumference can be divided into any equal parts. Machining workpieces of spur gears, Archimedes spiral cams, etc.

    BS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw ChuckBS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw ChuckBS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw ChuckBS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw ChuckBS0 CNC Rotary Axis Tailstock Adjustable Headstock 125mm 3 Jaw Chuck
