CNC Router 4th Fourth 5th Fifth A Axis Rotary Table Axis Dividing Head + 3 Jaws Chuck 100mm + Nema 23 Stepper Motor

♞【CNC
4th&5th Axis】CNC 4th&5th Axis with 3 jaw 100mm chuck (Model:
TRNC3M-A8-C6) ; Material: aluminum alloy ; Weight: 12.5KG ; Table size:
100mmx125mm

♞【Reduction
ratio and three-jaw chuck】The fourth axis (A/B axis) gear ratio: 8: 1 ;
The fifth axis (C axis) reduction ratio: 6: 1 ; Rotation range of A/B
axis: ± 90° ; C-axis rotation range: 0-360° ; with 3-jaw chuck: clamping
range 2-90mm (0.07-3.54inch) ; brace range 26-90mm (1.02-3.54inch)

♞【Stepper motor】 Nema23 two-phase 3A 4-wire stepper motor 76mm 1.8Nm

♞【Main application】It can realize three-dimensional carving, round carving, curve (surface carving), and hollow carving.

♞【Advantages】
This product is not easy to oxidize and rust, with high concentricity,
high conversion rate, accurate positioning, stable control, very
wear-resistant, and long service life

Descriptions:

• The fourth axis gear ratio: 8: 1 (Nema23 two phase 3A stepper motor)

• The fifth axis reduction ratio: 6: 1 (Nema23 two phase 3A stepper motor)

• With Chuck 100mm

• Table size: 100mmx125mm

• Center height: 98mm

• Dimensions: Length Width 440mmx150mmx160mm

• Weight: 12.5KG

• Material: aluminum alloy

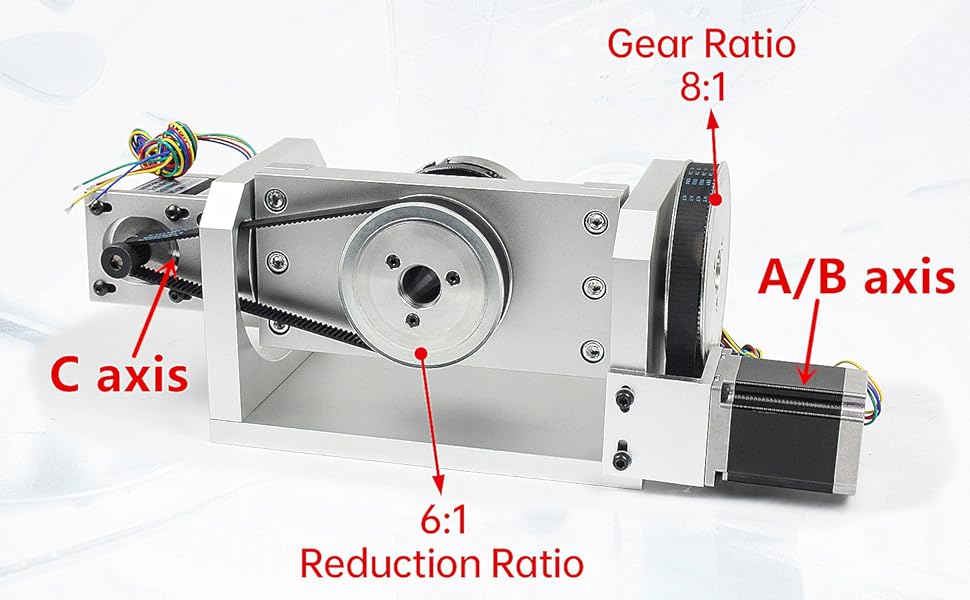

• A/B axis reduction ratio: 8:1

• C axis reduction ratio: 6:1

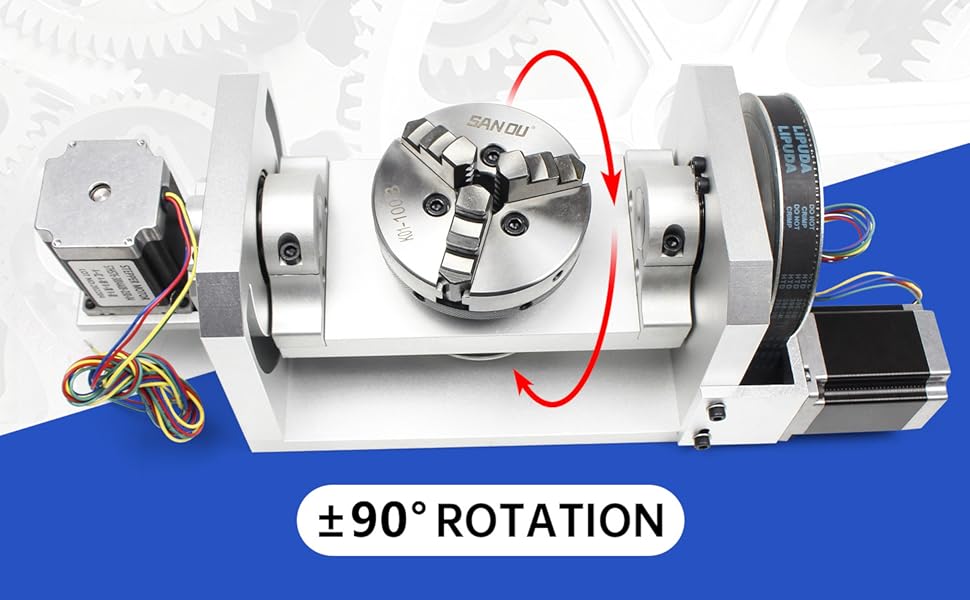

• Rotation range of A/B axis: ± 90°

• C-axis rotation range: 0-360 °

Main application

It can realize three-dimensional carving, round carving, curve (surface carving), and hollow carving.

Three-jaw chuck

Clamping range 2-90mm (0.07-3.54inch)

Brace range 26-90mm (1.02-3.54inch)

With chuck key and the aluminum alloy working plate in the figure above.

The key is used to tighten the carving.

The aluminum plate is used for carving square objects.

Stepper Motor

Feature of Stepper Motor

• Step angle: 1.8°

• Phase: 2

• Type: Hybrid

• Insulation resistance: 100MOhm (500V DC)

• Insulation Class: B

• Voltage: 4.8V

• Current/Phase: 3.0A

• Holding Torque:1.8Nm

• Length:57x57x76mm

Dimensional drawing
