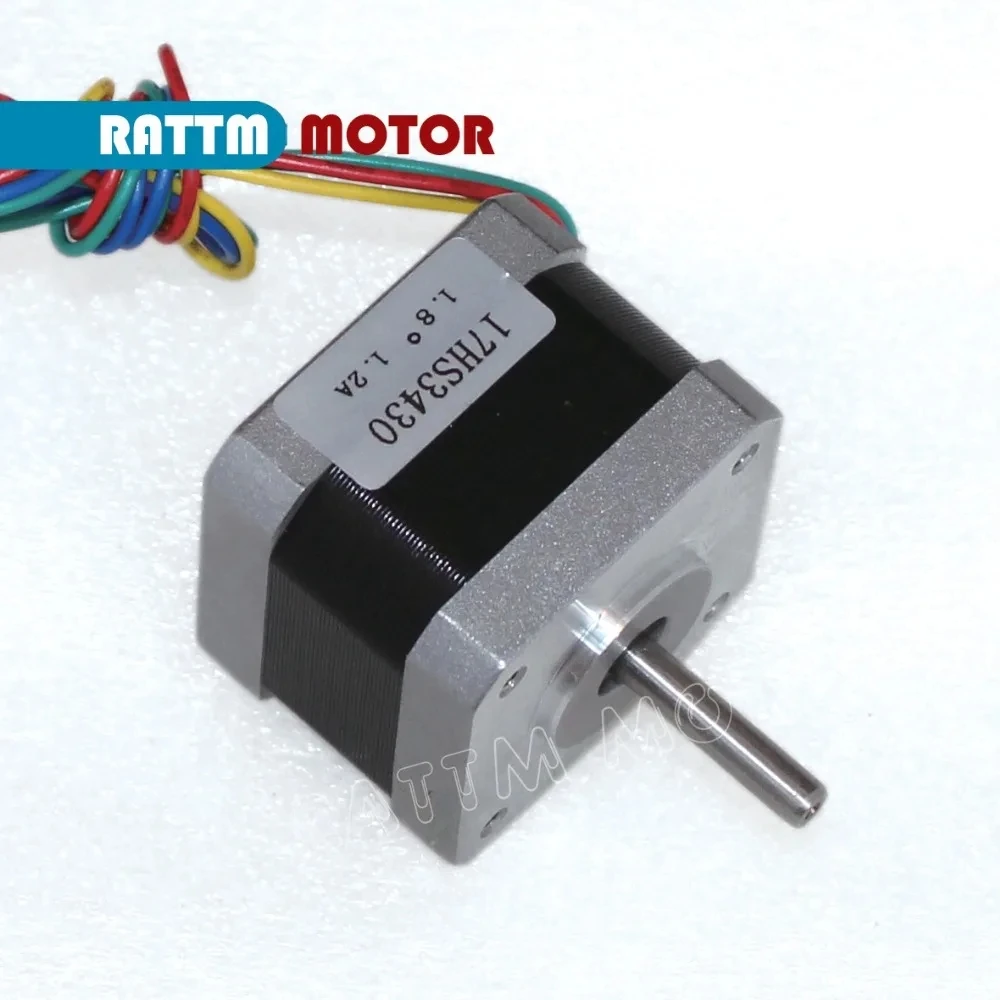

    17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer

    Ask Lasest Price
    Brand Name : Rattm Motor
    Model Number : 17HS3430
    Certification : CE CCC
    Price : $4.9-6.3
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer

    17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer

    • Stepper motor's red wire connect to driver's A+ port

    • Stepper motor's green wire connect to driver's A- port

    • Stepper motor's yellow wire connect to driver's B+ port

    • Stepper motor's blue wire connect to driver's B- port

    General Specification:

    Step angle accuracy: + - 5%(full step,not load)

    Resistance accuracy: + - 10%

    Inductance accuracy: + - 20%

    Temperature rise: 80deg Max(rated current,2 phase on)

    Ambient temperature ----------?20deg ~+50deg

    Insulation resistance:100M? Min,500VDC

    Insultion Strength--------500VAC for one minute

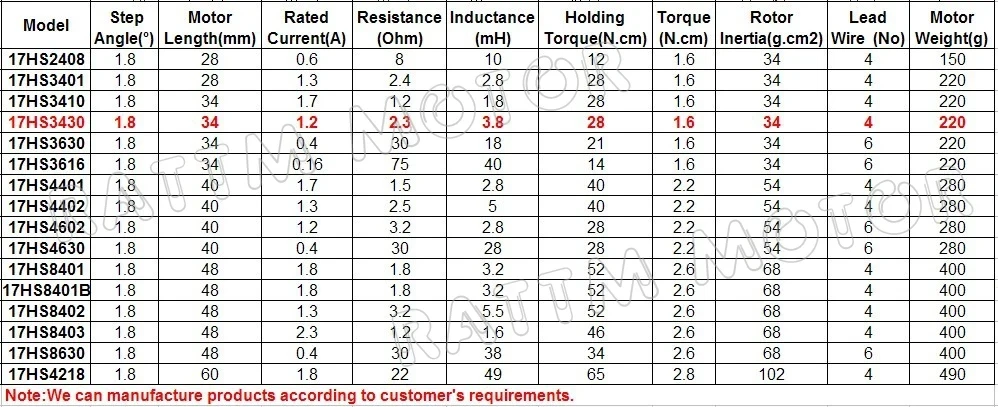

    Datasheet(17HS3430,1.2A,38oz-in or 2.5kg.cm holding torque,5mm diameter shaft):

    Advantages

    • Our motor is made of solid and durable metal. The perfect combination of
      rubber and rotor makes the internal structure more stable, and also
      reduces the vibration and noise when the engine runs.

    • The motor runs more quietly, with a high torque of 12Nm.The coil uses pure
      copper enamelled wire to ensure that long-term operation will not lead
      to excessive engine temperature.

    • The rotor surface is coated with high-quality epoxy resin adhesive to
      isolate the adsorbed burrs on the rotor surface, more stable magnetic
      field and longer service life of motor.

    17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer

    Usage or Application

    This products are widely used in engraving machine, printer, medical
    equipment,embroidery machine, stage lighting, textile automation,
    printing,packaging and other industries automation equipment.
