Package include:

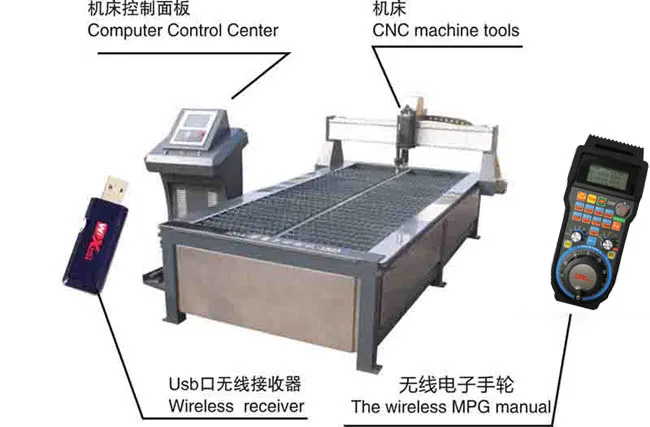

1 x Wireless Mach3 Handwheel MPG Pendant WHB04B-4 ( 4 Axis or 6 Axis follow your choice )
1 x Wireless USB Receiver
1 x English instruction by email
Description:
1) Adopt frequency hopping transmission, strong anti-interference
ability. Using 433MHZ, ISM wireless FR transmission technology,
transmit power 10DB, receive sensitivity -98DB.
2) With 64 frequency hopping channels, each channel interval 1MHZ.
3) Intelligent wireless technology, automatic frequency hopping,
automatic power saving, automatic to learn ID code.
4) Frequency hopping transmission technology, the same room, can
support 64 sets of equipment at the same time, do not affect each
other.
5) 100PPR manual pulse generator support 10 macro function button.
6) LCD display:Display Y Z A X axis of the mechanical coordinates
and workpiece coordinates. Show the spindle speed, the value of the
feed rate.
Dot matrix LCD with backlight. Axis selection, power band switch
control.
7) Axis select band switch to achieve the electronic hand wheel off
and the corresponding Y Z A X each axis function of the choice of
control.
The choice of the step distance value is realized by selecting the
switching value band, which is simple and convenient.
8) The series of remote control, providing DLL library files for
customers to carry out the 2 development,
suitable for the customer's own a variety of numerical control
system. The series of remote control, based on the WINDOWS system.
Application:
For Windows: All Mach3 CNC
Explanation:
1. Key success indication: when you press the button, the receives
the key value, the indicator flasher about, indicating successful
key operation.
2. Speed Indicator: when the band switch to select
1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.
3. Axis selected location: Axis selection switch position, LCD
display axis selected. X:X workpiece coordinate axis,1X:X axis
mechanical coordinate.
Key feature:
Features:
- Adopt frequency hopping transmission, strong anti-interference
ability
- Using 433MHZ, ISM wireless FR transmission technology, transmit
power 10DB, receive sensitivity -98DB.
- With 64 frequency hopping channels, each channel interval 1MHZ.
- Intelligent wireless technology, automatic frequency hopping,
automatic power saving, automatic to learn ID code.
- Frequency hopping transmission technology, the same room, can
support 64 sets of equipment at the same time, do not affect each
other
- LCD display
- Display Y Z A X axis of the mechanical coordinates and workpiece
coordinates.
- Show the spindle speed, the value of the feed rate.
- Dot matrix LCD with backlight
- Axis selection, power band switch control
- Axis select band switch to achieve the electronic hand wheel off
and the corresponding Y Z A X each axis function of the choice of
control
- The choice of the step distance value is realized by selecting
the switching value band, which is simple and convenient.
