500W CNC 4030 Pro CNC Engraving Machine DIY 2 In 1 3 Axis GRBL Wood Metal Laser Milling

Package include:

• 1x 4030 Pro cnc router machine
• 1x 500W DC spindle
• 1x Emergency Stop
• 6x limit switches board (XYZ both ends)
• 1x Z Axis Probe tool
• 1 x GRBL control board
• 1 x 10Pcs Engraving bits
• 1 x 2G U disk with GRBL software
• 1 x English User Manual

Feature:

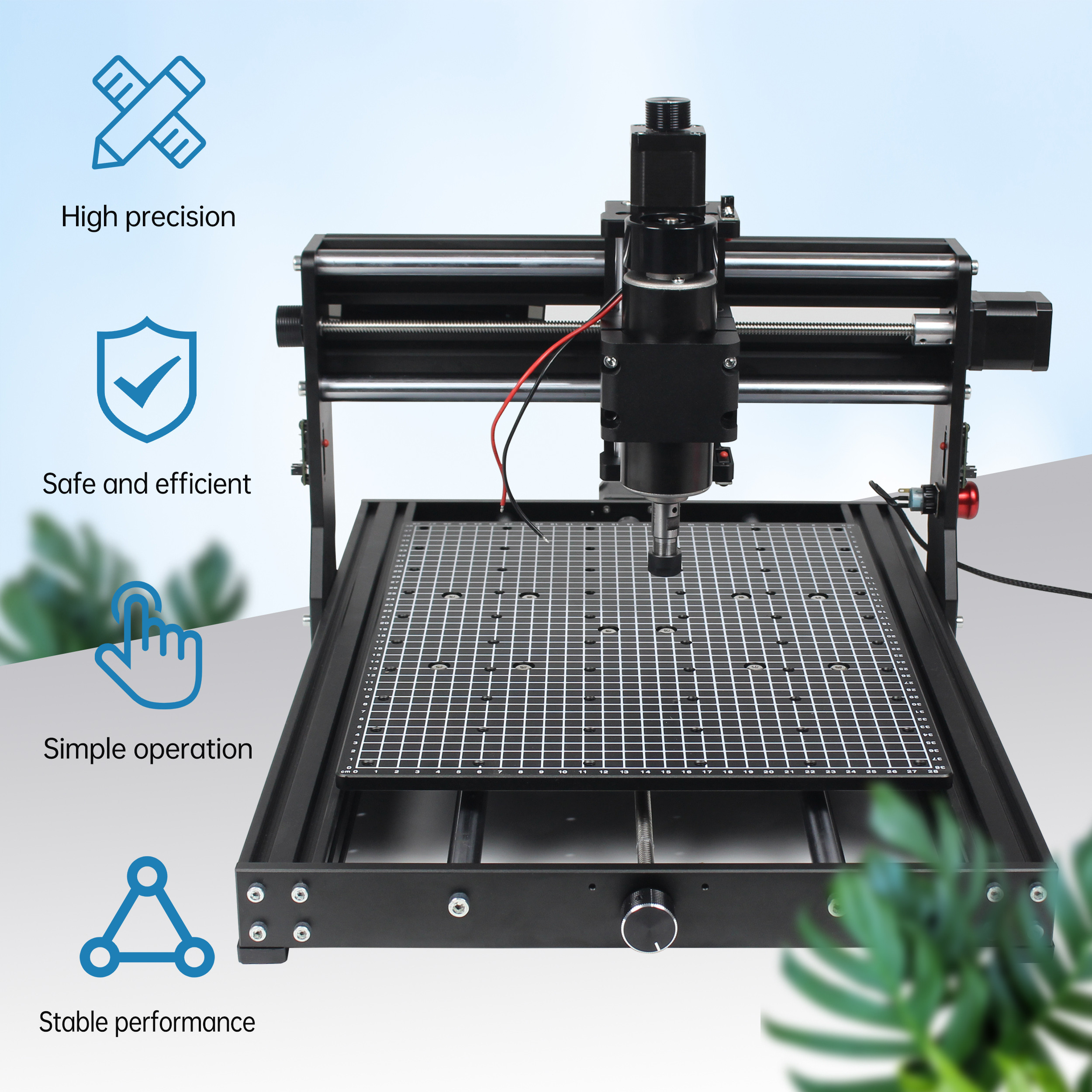

[High-power spindle and all-metal body]:This
4030 PRO PLUS CNC body has a solid structure, built-in all-metal body
structure, and upgraded 500W 52mm spindle and E11 collet, which is more
powerful and efficient, and can cut stainless steel, aluminum and other
metals

[Larger work area]:The
work area of the 4030 PRO router is larger than that of the 3018-PRO,
increasing to 300 x 400x 73mm). Our worktable has a special appearance,
with accurate scale lines and flat worktable, which is convenient for
you to locate and measure the size of the carving material. High-quality
emergency stop and 6 limit switches provide all-round protection and
safer use

[Wide compatibility, easy assembly]:CNC
engraving machine is compatible with GRBL software and supports Windows
XP/7/8/10, Linux and Mac OS (more complex than Windows operation). The
device has been pre-assembled and can be simply assembled after
unpacking.

Parameter:

Engraving area: 300x400x73mm;

Construction: Aluminum ;

Control Software: GRBL Control; Lasergrbl

Spindle Motor:500w SpindleDC48V, Max.11000rpm;

Stepper Motor: 42 step motor 1.68A 0.55N.M

Power Supply: Output DC48V 10.4A;

Available System for PC: Windows XP/7/8/10(Not support Mac OS);

Milling cutter: 3.175mm

Can engrave: wood, MDF, leather, paper, acrylic, plywood, stainless steel, anodized aluminum and so on.

Add limit switches Add the function of limit switches,optimized the limit port and the port connected to the device,making wiring and operation easier. After installing the limit switch, when the axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.	Add emergency stop switch Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.	Add Z Axis probe The tool setting device is mainly composed of a tool setting block and a feeler gauge to determine the relative position of the clamp to the cutter. High-quality materials,stable and durable,long service life. High precision,accurate tool setting and high accuracy of output signal position. The bottom is insulated,waterproof and oil resistant,and has strong durability when used. Alligator clips are smooth and flat,clamped on the spindle cutter head,and the clamping force is read well. Suitable for processing wood, acrylic, plastic, aluminum, steel and other materials

Wide application

• Can engrave on Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Ceramic products, Food, Bamboo, Plastic, Plywood, Stainless steel, Brass, Plexiglass, Aluminum and so on.
• This machine can both carve and cut.It can cut 8mm wood products at one time,more easy to create DIY handmade.

Cutting 5-12mm MDF :(Wooden Class) ; Feed rate: 300mm/min;Cutting rate: 100mm/min Cutting the 2-3mm Acrylic: (Acrylic Type); Feed rate: 200mm/min;Cutting rate: 80mm/min Cutting 1-5mm Aluminum Plate: (Metal Type) ; Feed rate: 250mm/min;Cutting rate: 100mm/min	More applications If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.	GRBL software Our parcel include a 2G USB flash drive,you can download the english user manual and GRBL software from the flash drive. File formats supported by the software: *.nc, *.ncc, *.ngc, *.tap, *.cnc. Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
