Package include:

Parameter:

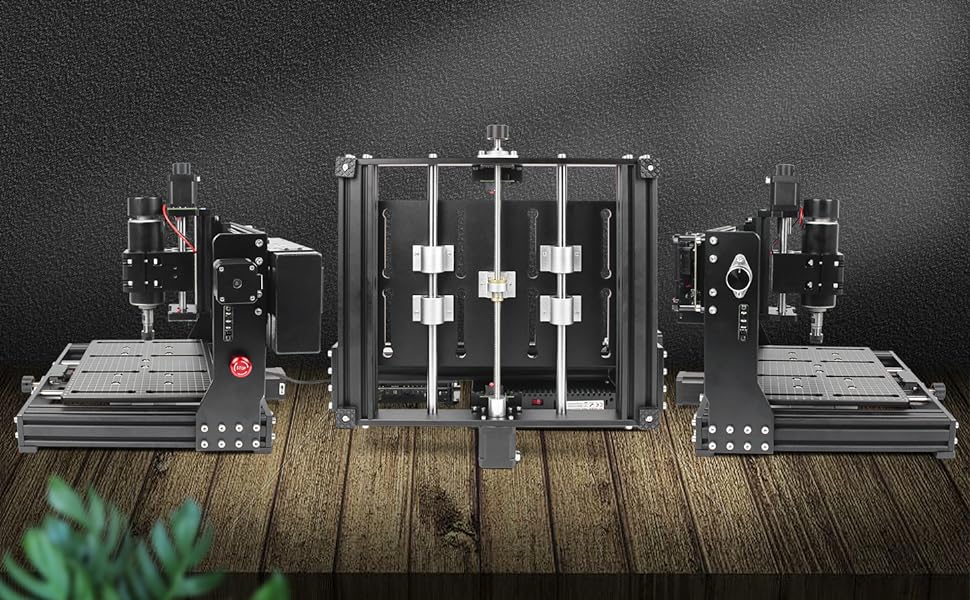

The body structure of this 3020 Plus CNC engraving machine is made of All-Metal(no plastic parts).
It is equipped with 12mm thick solid double-steel linear guide rail and bearing slide rail.
All-metal X-Z axis parts have a vertical stroke of up to 73mm,these designs enable the machine to move faster,with 0.01mm high accuracy and stability.
The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material.
The machine is equipped with an emergency stop and limit switches.
The 3020 Plus CNC router is equipped with 500W 48V 11000rpm spindle(with E11 collet),which is more powerful and efficient,and can cut stainless steel,aluminum and other metals.
Small and practical, no problem for using on your desk.
Support Win XP, Win 7,Win 8, Win 10 system
Aluminum alloy material with fine workmanship show excellence in quality.
Very interesting to install and use, perfect gift for engraving DIY enthusiasts.
Wide application: can be used for print, hand tools and industrial processing.

Connection: USB (USB-CH340)
Support software: GRBL controller(Candle)
Supporting file:G-code (.nc/.txt/.tape/.gcode)
Add emergency stop button port,tool probe port and XYZ limit port.
Power supply:48VDC
The spindle supports 0-100% adjustable PWM power.
Support limit switch, tool setting, steering gear, cooling fan and other functions.
Support PWM / TTL signal control, power 0-100% adjustable.
Increase the power button switch.
Support 3-pins module: support 0.5W-40W module.
Cancel the drive module,integrate the imported stepper motor drive,no need to worry about module damage. And integrated heat dissipation aluminum alloy.
Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
Add the fan port to force heat dissipation.


Add limit switches Add the function of limit switches,optimized the limit port and the port connected to the device,making wiring and operation easier. After installing the limit switch, when the axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.	Add emergency stop switch Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.	Add Z Axis probe The tool setting device is mainly composed of a tool setting block and a feeler gauge to determine the relative position of the clamp to the cutter. High-quality materials,stable and durable,long service life. High precision,accurate tool setting and high accuracy of output signal position. The bottom is insulated,waterproof and oil resistant,and has strong durability when used. Alligator clips are smooth and flat,clamped on the spindle cutter head,and the clamping force is read well. Suitable for processing wood, acrylic, plastic, aluminum, steel and other materials

Can engrave on Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Ceramic products, Food, Bamboo, Plastic, Plywood, Stainless steel, Brass, Plexiglass, Aluminum and so on.
This machine can both carve and cut.It can cut 8mm wood products at one time,more easy to create DIY handmade.


Cutting 5-12mm MDF :(Wooden Class) ; Feed rate: 300mm/min;Cutting rate: 100mm/min Cutting the 2-3mm Acrylic: (Acrylic Type); Feed rate: 200mm/min;Cutting rate: 80mm/min Cutting 1-5mm Aluminum Plate: (Metal Type) ; Feed rate: 250mm/min;Cutting rate: 100mm/min	More applications If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.	GRBL software Our parcel include a 2G USB flash drive,you can download the english user manual and GRBL software from the flash drive. File formats supported by the software: .nc, .ncc, .ngc, .tap, *.cnc. Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.
