· 1 x 4 Axis Control box 220V
· 1 x USB cable
· 1 x Power cable(US,EU plug)
· 1 x Tool box and tools
· 3 x NEMA23 stepper motors
· 1 x 2.2Kw water cooled spindle motor ER20
· 1 x 2.2Kw Inverter VFD
· 2 x connect wires
· 1 x 75W water pump
· 1 x the rotary axis with stepper motor
1 x 4 axis USB Mach3 Wireless Handwheel (optional)

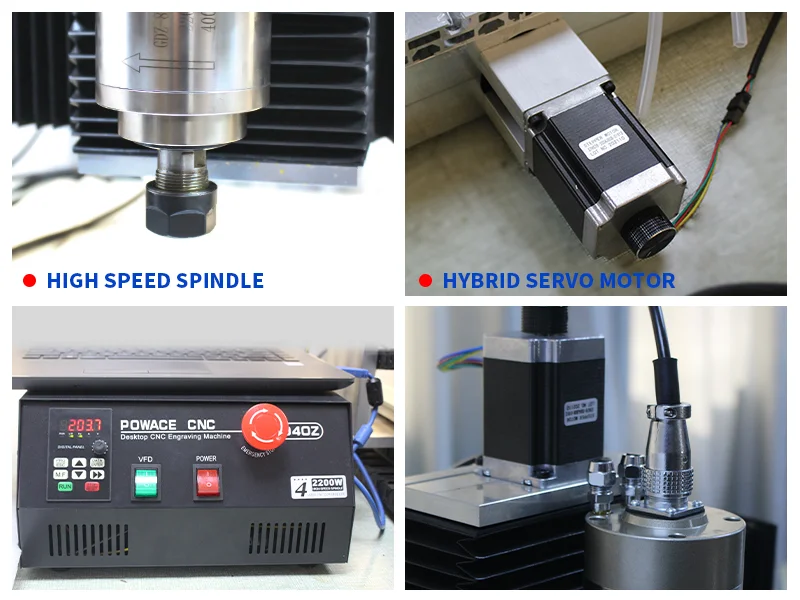

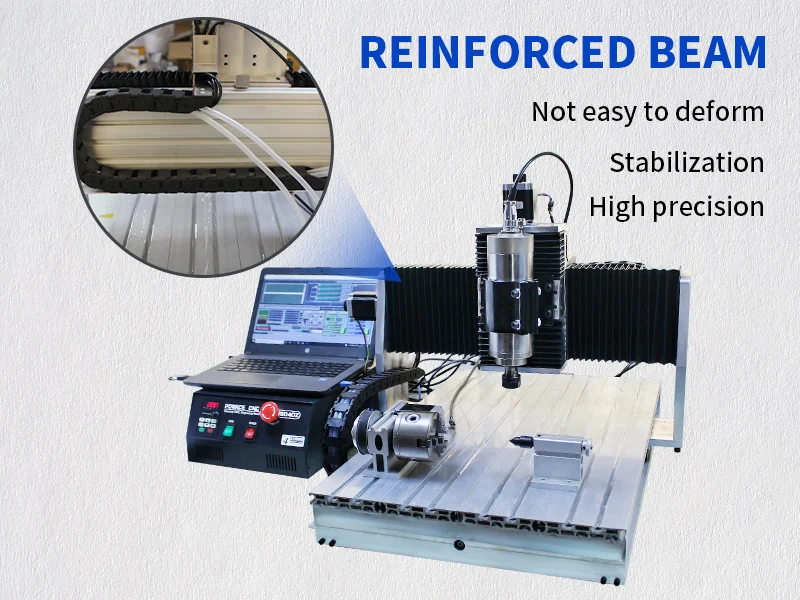

6040Z-2200W USB Mahc3 4-Axis CNC engraving machine:
Specifications
Max. working stroke:XYZ=380×575×80mm
Acceptable material thickness:≤115mm
Dimensions:870X670X560mm
Frame Material:6061-T5 extruded aluminum alloy
Rail type:Chromeplate shaft+Linear Bearings
Screw Type:Ball screw,Diameter 16mm,screw thread pitch 5mm
Mechanical Resolution:X Y Z-axis : 0.0025 mm/step
Positioning accuracy:0.05mm
Spindle Motor:Powerful Brushless frequency spindle,2200W
Revolution Speed:3000~24000rpm/min
Collet type:ER20(equipped with 6mm collet)
X Y Z Motor:Stepper Motor 57BYGH76-3A
Stepper Drives:High performance,Each axis independently driven
Feed rate:300~5000mm/min
Communication Interface:USB2.0 (Please use Mach3 control)
Command Code:G code/.nc/.ncc/.tab/.txt
Power Supply:Input 220V~240VAC (50/60Hz),or 100~120VAC
Operation Environment:Temp: 5°~40° C; Humidity: 35 to 80%
Weight:58kg (Including packaging )
Application
The 6040Z-2200W/USB CNC engraving machines make it fast and easy to
engrave
or scribe a wide variety of materials. Spindle speed can be varied
between 3,000 and 24,000 rpm for engraving a wide variety of
materials, including wood, urethane foam, plastic, acrylic, and
light
metals such as brass and aluminum.
CNC 6040 is suitble for Industry,Technology Research,Advertising
Design,Arts Creation,Teaching,Student Project and Hobby Purposes.
CNC 6040 is designed for large area engraving work such as
Industrial or
Hobby Prototype Building, Building Model Making,PCB,Adverstising
Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can
do
engraving work at office or home.In addition,It is with four
axis(rotary
axis) and tailstock.
Application
CNC 6040 is designed for large area engraving work .The
Computerized CNC
Engraving and Cutting Machine is suitable for various materials,
such as
WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic,
wood,composite board plywood,It can be used widely to process or
make
adverstising signs,PCB,nameplates,badges,seals,bronzing
plate,aluminium
alloy,acryplates,ABS resin double color plate,PVC foaming
board,indentation plates,signs,construction models,instrument
panels,wooden products,etc.
If you want to make sure this laser engraver will engrave on a
certain
item or cut a certain item, you are welcome to send me a sample of
that
item and I will test it for you.
How to use:
Please read the English user manual to see how to set up the
software and how to use this machine.
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the MACH 3 or
EMC2 on your computer.
4.Connecting the control box with the CNC machine and you computer.
5.Fllowing our manual or guideline to set uo the software.
6.You can enjoy making you dream with using our CNC machine now.

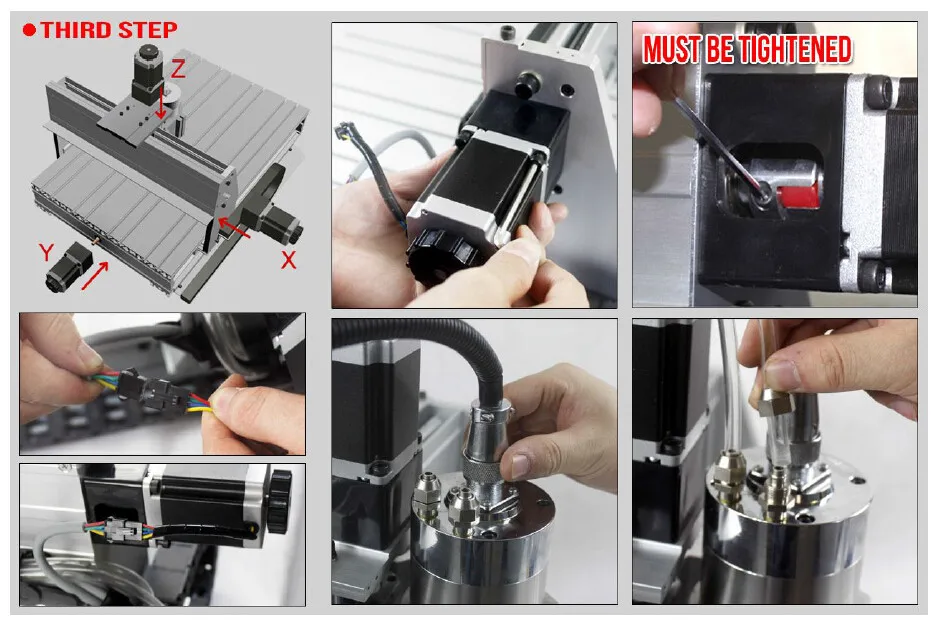

6040 machine frame install step with motors:
if you complete installation steps,pls check some motor connecer
has firm
Notice:
1) Click the “starter” in mach3 turn on the spindle and then click
again
will turn off,and click the speed button will change speed too.
2) Input the M3 in Mach3 spindle setting to turn on the spindle and
input
M5 will turn off,and input S15000 the spindle will work at 15000rpm
speed.
Add M3 S18000 in the beginning of engraving file and M5 at the
end,the
spindle will work at 18000rpm speed and stop when finish work.
