Brand Name : | RATTM MOTOR |
Model Number : | 3KW Water Cooled Spindle motor |
Certification : | CE |
Price : | USD188-383/Piece |
Payment Terms : | T/T, Western Union, Paypal |
Supply Ability : | 100Pieces/day |
Delivery Time : | 3-5 work days |
Good News: We have warehouse in some countries, check as bellows
Warehouse location | Shipping Carrier | Delivery Countries | Delivery Time | Advandge |
Germany&Czech Republic | DHL/GLS | EU Countries | 3-12 Business days | 1. Fast Delivery 2. No VAT Tax |
United States | UPS/USPS | United States only | 3-12 Business days | 1. Fast Delivery 2. No VAT Tax |
Package include:

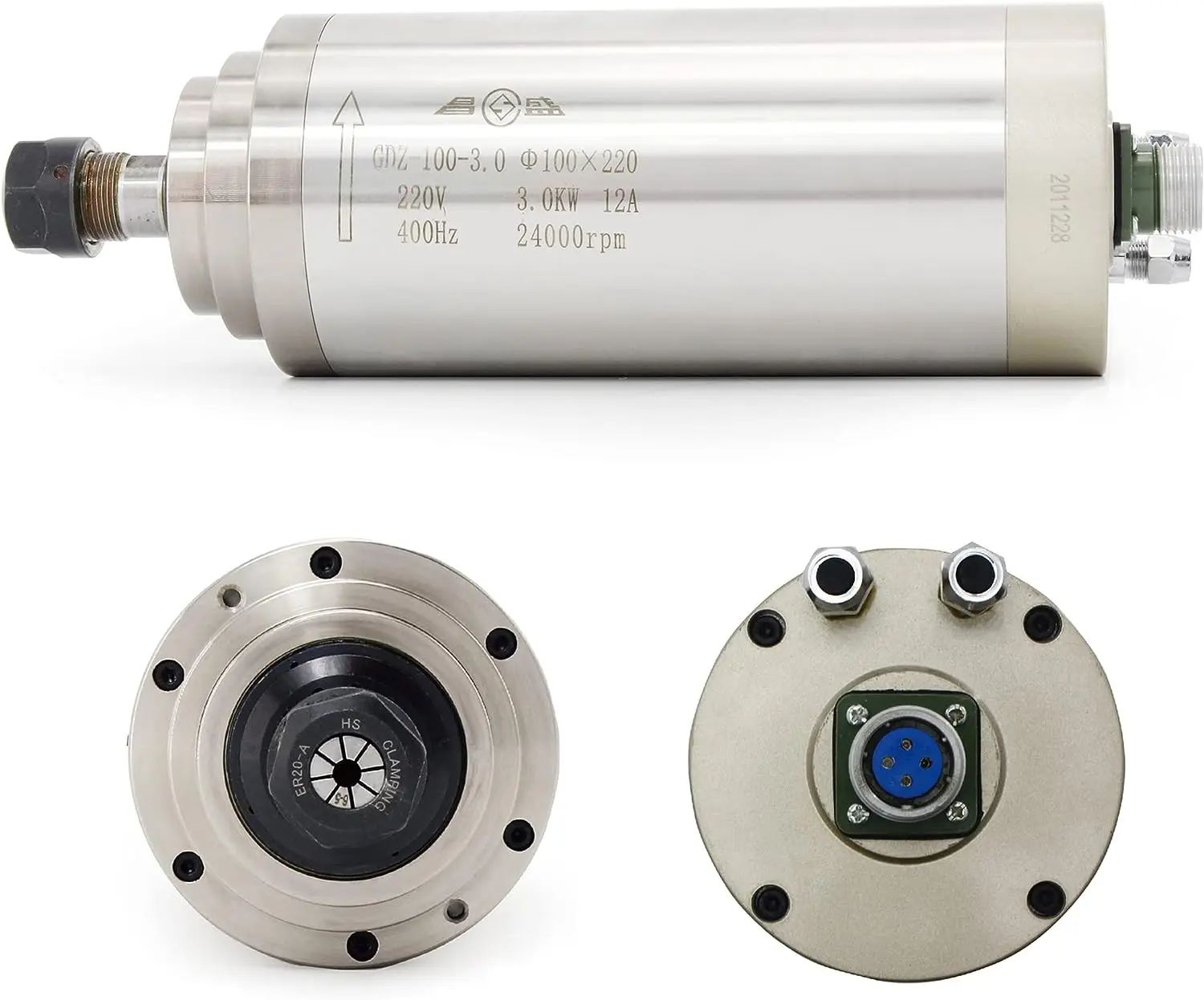

1 x 3KW ER20 220V water-cooled spindle motor 400Hz 24000RPM
Specification:
Size:100x220mm(Middle body diameter:100mm x Length:220mm)
Power:3Kw
Voltage:220VAC
Frequency:0-400Hz
Speed:10-24000rpm
Air Cooling:ER20collet chunk
Runout off:less than 0.02mm
Bearing:4pcs bearing(2x7002+2x7005)
Bearing Lubrication:Grease
Power Interface:Professional aviation Interface, Interface 1234
marked 123
respectively connected to the inverter output end of the (U, V, W),
4
ground wire this interface must be safe ground.
![]() |
