    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V For CNC Engraving Machine

    Good News: We have warehouse in some countries, check as bellows


    Oversea warehouse-Fast Shipping-Free VAT Tax

    Warehouse locationShipping CarrierDelivery CountriesDelivery TimeAdvandge
    Germany&Czech RepublicDHL/GLSEU Countries3-12 Business days

    1. Fast Delivery

    2. No VAT Tax

    United StatesUPS/USPSUnited States only3-12 Business days

    1. Fast Delivery

    2. No VAT Tax



    Package include:


    1 x 4.5KW BT30 ATC Air Cooled Spindle Motor 220V or 380V ( 24000rpm, 15A,3-phase,800Hz, 4pcs bearing )

    2 x Aviation plug

    1 x BT30-ER25 Tool Holder with pull stud


    1 x 5.5KW Fuling Brand Inverter VFD 220V

    English user manual will send by email


    I. 4.5KW BT30 ATC Air Cooled Spindle Motor 220V or 380V

    Product technical parameter table
    Spindlemodel:RTM120x103-30-24Z/4.5220VVoltage:220V
    Maximum speed:24000rpmRated frequency:800Hz
    Electric current:15AMotorpole:4P
    Rated power:4.5KW(S1)Peak power:5.4KW(S6)
    Rated torque:3.5NmPeak torque:4.2Nm

    Product characteristic curve graph:

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    Wiring definition:

    Power supply, Fhermal, Fan

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    Proximity switch and push button switch:

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

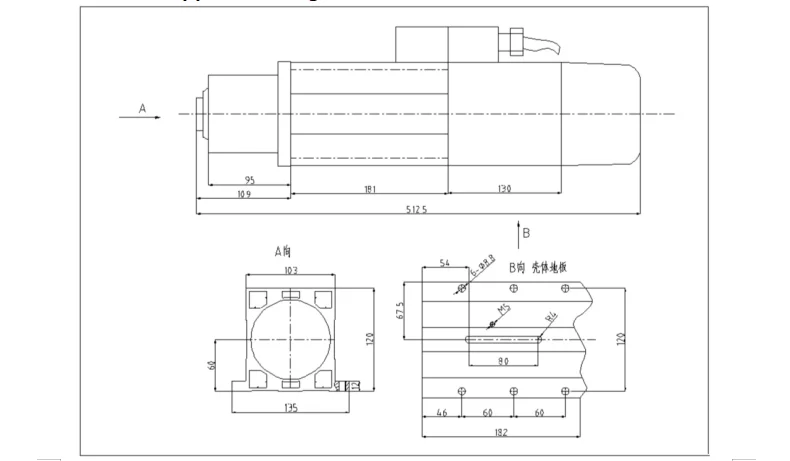

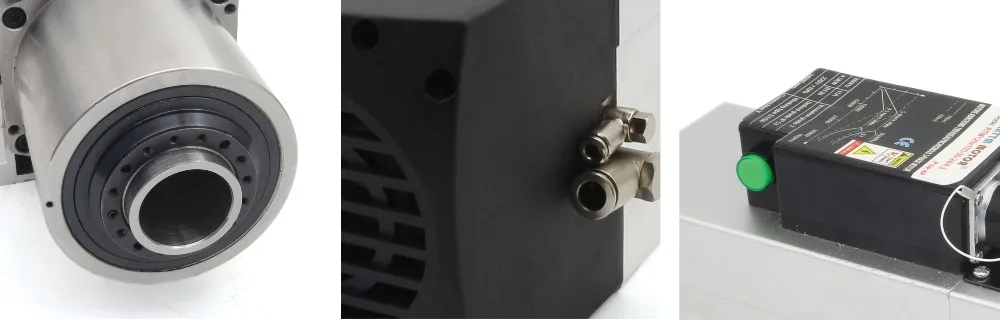

    Details:

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    1)This
    spindle is built-in type spindle motor, built-in three asynchronous
    motors,by the inverter control.As the spindle has a compact
    structure,high power, big torque, small vibration, low noise
    characteristics,so it can achieve high speed,high powe cutting,high
    precision and high stability operation.

    2)The
    bearing of spindle use grease lubricated angular to contact
    bearings,can be achieved lifelong lubricating within the life cycle.

    3)The
    spindle use forced coolling mode to coolling motor,front and rear
    bearings.Coolant flow through the reasonable arrangement cycle
    watercourse of the spindle body,thus can take the heat generated of the
    spindle rotation speed, to achieve thermal equilibrium,let spindle
    temperature within a certain constant value. External cooling device
    effect:maintaining a constant temperature of the coolant.

    4)The
    spindle built-in PTC 140 temperature sensor(Technical parameters are
    visible in other sections of this specification),you can read it anytime
    if you need to protect the motor temperature.

    5)The tool clamping methods:this spindle built-in automatic tool change device,shank form is BT30.

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V


    Technicalparameters
    No.ProjectStandard
    1Spindle blowing dust/seal gas pressure(MPa)0.2-0.25
    2

    Spindle gas seal gas flow

    (L/min)

    65±10(When onWorking)
    3Cooling water pressure(MPa)≧0.25
    4Cooling water flow(L/min)≧2.5
    5Cooling water temperature(℃)24-28
    6Spindle static state pulse(µm)≦3
    7Spindle vibration(mm/s)≦1.0
    8Spindle assembly methodBottom mounting(6-M8)
    9Motor windingsPressure test(V/M)1000V/1 minute withstanding Voltage test
    10Tool InterfaceTool InterfaceBT30
    11Inverter Specifications5.5KW(220V)
    12FitmentWoodworking machinery, polishing industry, etc.

    5.Spindle installation explanationSpindle installation explanation

    1)Fan cooling system description

    When
    the spindle rotates, the rear fan system must be started to ensure the
    correct supply voltage and the supply voltage is 12V.

    2)Air sealing control(AS)

    In
    order to prevent water or impurities enters internal of the
    spindle,spindle will have gas sealing device,the gas seal machine must
    be started start with the machine at the same time.And the need to go
    throughmulti-stage filtration.

    3)Compressed gas quality requirements

    The quality requirement of gas which is used in gas seals:

    Oil content:﹤0.01mg/m³

    Solid particle:﹤5µ m

    Pressure dew point:﹤7.5℃(0.7MPa)

    4)Running-in program instructions

    Only
    all monitoring issued no failures operational signals,at the same
    time,all safety devices have been installed and working properly,then
    allow start spindle.

    Note:new
    or spindlewhichis not used for a long time must to be running
    slowly.First,start run spindle for half an hour as 25% of the maximum
    speed,then increaseto50% of the maximum speed,to run 15
    minutes,finally,increase to maximum speed.It’s need to check the temperature of the spindleduring the wholeprocess,spindle
    will get hot, but not hot hand, if the spindle becomes hot, pls stop
    the operation and contact our customer service department.

    5)Product backend interface instructions

    No.FunctionDefinition
    1Gassealing(Protection of impurities into the spindle0.2-0.25MPa)Ф6
    2Return air(piston reset 0.35-0.45MPa)Ф6
    5Power supply(Spindle power lines with thermistor)U/V/W/ Ground wire
    6Intake air(Spindle loose knife0.5-0.6MPa)Ф6
    7Sensor(spindle tool change signals 24V)Broach / loose knife
    8Fan (spindle cooling)12V

    6)PTC140Temperature coefficient thermistor parameters

    Our products are equipped with a single thermistor PTC140, it can be used for spindle temperature protection.

    Parameter nameParameter symbolSingle coreThree core Series connectionUnit
    Maximum DC working temperatureUmax3030V
    Rated control temperatureTkDesigned according to user
    Rated control temperature tolerance4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220VT1±5℃±5℃
    Rated control temperature tolerance4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220VT2±0.5℃±0.5℃
    Resistance value on 25℃R25≤100≤300Ω
    Rated control temperature
    on -5℃resistance value
    Tk-5℃≤550≤1600Ω
    Rated control temperature
    on +5℃resistance value
    Tk+5℃≥1330≥4000Ω
    Rated control temperature
    on +15℃resistance value
    Tk+15℃≥4≥12
    Thermal response timeTa≤5≤5S
    Dielectric strengthUisAC2.5AC2.5KV
    Maximum control temperatureTkmax180180
    Maximum allowable storage temperatureTmax180180
    Minimum allowable storage temperatureTmin-40-40

    7) ProductTool ChangeSignalsDescription

    Sensor Model (0-24V, PNP),The spindle built two sensors.wiring Diagram is as follows:

    1. Response broach knife signal, when theknife handleis hang,black sensor output signal;

    2. Response loose knife signal, when theknife jawsopen,black sensor output signal;

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V

    4.5KW CNC ATC Automatic Tool Change Spindle Motor BT30 Air Cooled 220V
