    Nema 34 Stepper Motor 98mm 34HS9801 Single Shaft For CNC Router Machine

    Ask Lasest Price
    Brand Name : Rattm Motor
    Model Number : 34HS9801
    Certification : CE CCC
    Price : $43.2-45.6
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000
    Delivery Time : 2-7 work days
    • Product Details
    • Company Profile

    Nema 34 Stepper Motor 98mm 34HS9801 Single Shaft For CNC Router Machine

    Nema 34 Stepper Motor 98mm 878Oz-In 5.6kg.Cm 34HS9801 Single Shaft 14mm For CNC Router Milling Engraving Machine

    • Stepper motor's red wire connect to driver's A+ port

    • Stepper motor's green wire connect to driver's A- port

    • Stepper motor's yellow wire connect to driver's B+ port

    • Stepper motor's blue wire connect to driver's B- port

    ModelStep
    Angle()
    Motor
    Length(mm)
    Rated
    Current(A)
    Phase
    Resistance(Ohm)
    Phase
    Inductance(mH)
    Holding
    Torque(N.cm
    Detent
    Torque(N.cm)
    Rotor
    Inertia(g.cm2)
    Lead Wire
    (No)
    Motor
    Weight(g
    34HS68011.86940.61.63005.50.8542000
    34HS68021.86950.413005.50.8542000
    34HS68031.8692.71.23.53005.50.8542000
    34HS88011.87840.733506.51.0542500
    34HS88021.87850.51.83506.51.0542500
    34HS88031.8782.70.55.63506.51.0542500
    34HS98011.89840.984.15609.51.5543000
    34HS98021.89850.652.45609.51.5543000
    34HS98031.8982.71.98.65609.51.5543000
    34HS48011.811641.15.585012.51.843600
    34HS48021.811650.454.785012.51.843600
    34HS4802B1.811650.454.785012.51.843600
    34HS48031.81162.7211.585012.51.843600
    34HS28011.812741.35.8100018.52.244500
    34HS28021.812750.853.4100018.52.244500
    34HS28031.81272.72.512.5100018.52.244500
    34HS58011.815441.49.2120024.52.545200
    34HS58021.815450.586.8120024.52.545200
    34HS5802B1.815450.586.8120024.52.545200
    34HS58031.81542.72.917.5120024.52.545200

    General Specification:


    Step angle accuracy: ±5%(full step,not load)

    Resistance accuracy: ±10%

    Inductance accuracy: ±20%

    Temperature rise: 80deg Max(rated current,2 phase on)

    Ambient temperature ----------—20deg~+50deg

    Insulation resistance:100MΩ Min,500VDC

    Insultion Strength--------500VAC for one minute

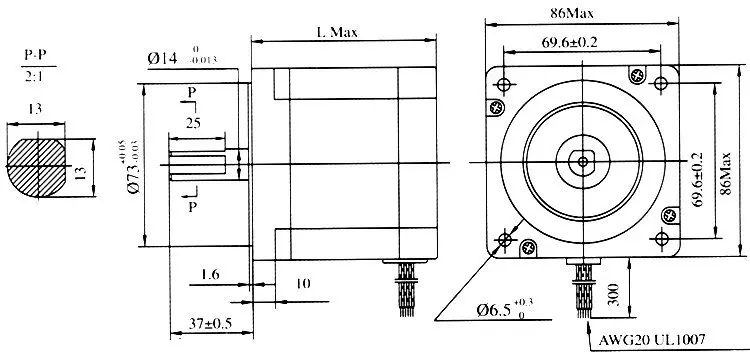

    Datasheet


    (34HS9801,4A,878 oz-in or 5.6kg.cm holding torque,14mm diameter and 37mm length shaft with keyslot ):


    34HS dra.jpg
