    USB CNC MACH3 Interface Control Board 4 Axis 2000Khz Stepper Servo Motor

    Ask Lasest Price
    Brand Name : RATTM MOTOR
    Model Number : MKX-IV-II
    Certification : CE
    Price : USD119-159/Piece
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 100Pieces/day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    USB CNC MACH3 Interface Control Board 4 Axis 2000Khz Stepper Servo Motor

    USB CNC MACH3 4-Axis Controller CNC Interface Control Board High-Frequency 2000Khz Stepper Motor Servo Motor

    Good News: We have warehouse in some countries, check as bellows

    Oversea warehouse-Fast Shipping-Free VAT Tax
    Warehouse locationShipping CarrierDelivery CountriesDelivery TimeAdvandge
    Germany&Czech RepublicDHL/GLSEU Countries3-12 Business days

    1. Fast Delivery

    2. No VAT Tax

    United StatesUPS/USPSUnited States only3-12 Business days

    1. Fast Delivery

    2. No VAT Tax


    Package include:

    1pcs 3/4Axis MACH3 Motion Card USB 2000KHz Interface board


    USB CNC MACH3 Interface Control Board 4 Axis 2000Khz Stepper Servo Motor

    Features:

    · Support all versions of Mach3.

    · Can only run under Windows operating system.

    · USB does not need to install drivers, the Windows version is plug and play.

    · Fully support USB hot-plug, monitor the USB connection status at any time, when Mach3 is working, the USB cable can be unplugged and then plugged in, and the connection can be normal.

    · Support up to 6-axis linkage, including jogging 6-axis linkage. (Depending on the model, the number of supported axes is different)

    · With 2000KHz pulse output, support servo/step.

    · With status indicator, it can prompt USB connection and Mach3 connection. During operation, various states can be seen at a glance.

    · With 16 input IO, 8 output IO ports

    · All IO ports are fully isolated, with strong anti-interference and stable performance

    · Support spindle PWM speed control output; support spindle pulse + direction output; support spindle 0 to 10V analog voltage speed control output.

    · 184x110x30 mm, aluminum shell, shielding interference, stable and reliable.


    Product Number

    MKX-IV-II

    Axis output control

    Drive Current

    Isolated open collector output; 5V; 20mA

    Drive

    Pulse+direction output

    Output frequency

    2000KHZ

    Axes

    MK3:3-axis;MK4:4-axis;MK6:6-axis

    Isolation Voltage

    3.5KV

    Spindle inverter output: 3 types of output modes

    Analog voltage output

    0~10V

    PWM output

    5V,1KHZ, Duty; 0-100%

    Pulse+direction output

    5V, 15Hz to 4KHz

    8 IO output

    Drive Current

    Isolation: 50mA, 25V

    Isolation Voltage

    3.5KV

    16 IO output

    Input Current

    Isolation inputs, 5mA, maximum voltage 25V

    Isolation Voltage

    3.5KV

    USB interface

    Complies with USB2.0 standard

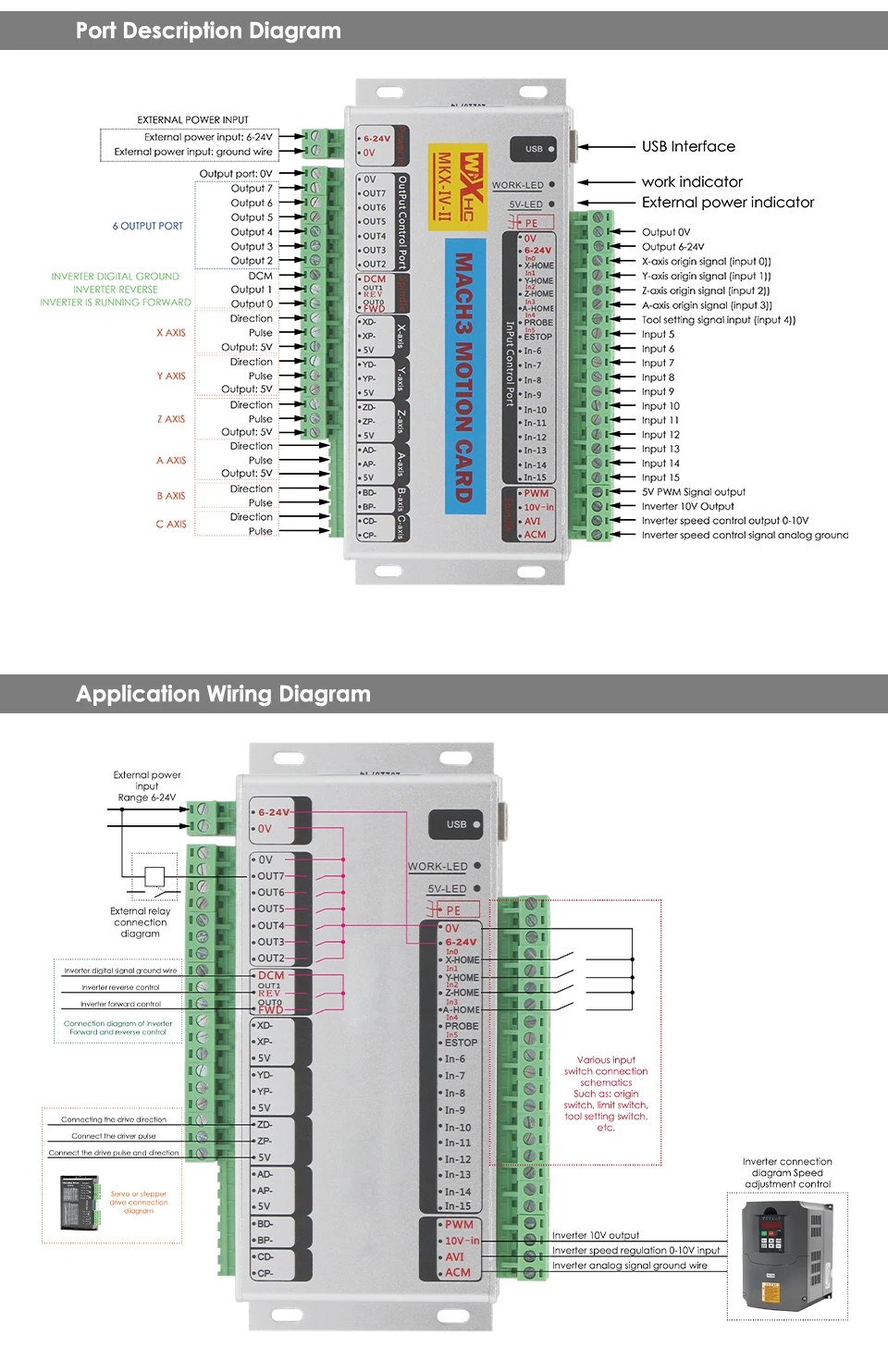

    Input signal interface

    There are 16 input signals, and the low-level input is valid, and the input current is 5 mA.

    Support 6-24V signal input.

    Each signal is defined as follows:

    X-HOME: X-axis origin signal input, corresponding to MACH3 software input IO port: P1.0

    Y-HOME: Y-axis origin signal input, corresponding to MACH3 software input IO port: P1.1

    Z-HOME: Z-axis origin signal input, corresponding to MACH3 software input IO port: P1.2

    A-HOME: A-axis origin signal input, corresponding to MACH3 software input IO port: P1.3

    PROBE: tool setting signal input, corresponding to MACH3 software input IO port: P1.4

    IN5-IN15: input port, MACH3 software input IO port is: P1.5-P1.15


    Spindle inverter interface

    MKX supports spindle speed adjustment, inverter interface, or PWM interface.

    MKX spindle interface speed control output, supports 2 ways: 0-10V analog voltage output; or 0-5V analog voltage output; or 5V PWM signal output.
    When the analog voltage output is used to adjust the speed, a DC voltage needs to be input to the board, and the value

    of the DC voltage determines the maximum voltage value of the analog voltage output; for example, the DC voltage input: 10V, the analog voltage output is 0-10V Variety.
