4.5KW Air Cooled CNC Spindle Motor,CNC Spindle Square Flange High Speed 18000rpm ER32 4 Bearings

Good News: We have warehouse in some countries, check as bellows

Package include:

• 1 x Square 4.5KW Air Cooled Spindle Motor ER32 (220V,18000rpm,4 bearing,300Hz)
• 1 x Wrench

Square 4.5KW Air Cooled Spindle Motor 220V

Specification:

• Material: Stainless Steel
• Power: 4.5Kw
• Voltage: 220VAC
• Current: 14A
• Frequency: 0-300Hz
• Speed: 0-18000rpm
• Cooling: Air-cooled
• Runout off: Less than 0.01mm
• Bearing Lubrication: Grease
• Collet size: ER32
• Bearings: 4 bearings
• Net Weight: 12.6kg

Simple wiring

• Spindle’s terminal"U1"connect inverter’s"U"
• Spindle’s terminal"V1"connect inverter’s"V"
• Spindle’s terminal "W1" connect inverter’s "W"

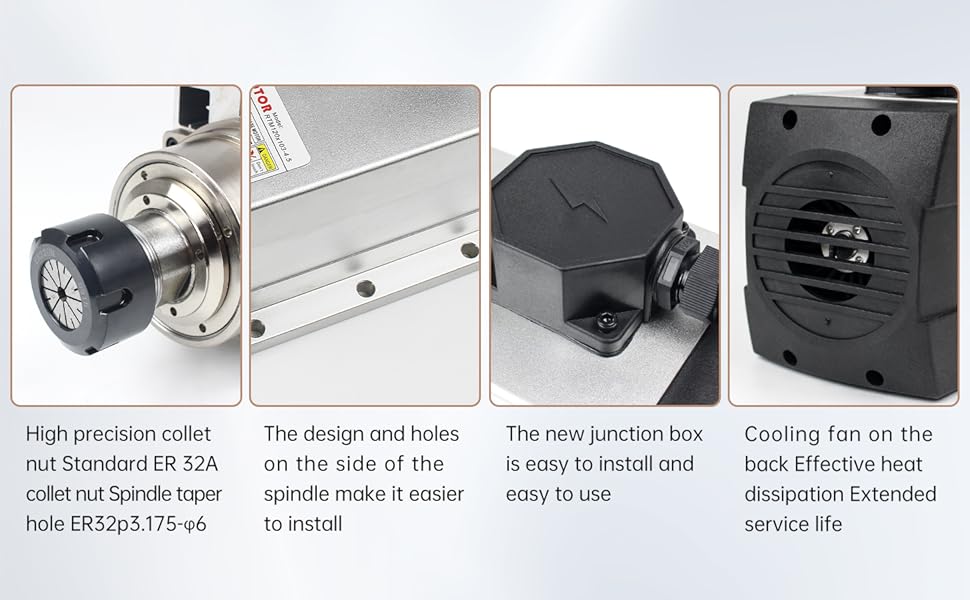

Advantages

• Our spindle uses 4 bearings,P4 fully sealed angular joint bearings can extend the life of the spindle.
• Bearings are resistant to high temperature and low heat
• The ball bearing has low friction, low noise and long service life.
• ER32 Collet Nut balancing nut high grinding inner cone precision 0.01mm.
• Aluminum profile body, not easy to deform, anodized surface treatment, shell not affected by time,
• Fast heat dissipation design,with its own cooling fan, good cooling effect,also improved spindle life.
• Easier installation with flange.
• Internal pure copper coil rotor, strong conductivity, good heat resistance, strong motor power, more durable.

Spindle dimension drawing

Note

• When the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together.The specifications and parameter settings of the inverter match the spindle parameters.
• To connect the inverter to the spindle, the three-phase inverter power cord should be welded to the plug 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4.
• Careful assembly makes the spindle more precise.

Main use:

Carving wood, bamboo, PMMA or other plastic,MDF board,ordinary PCB, PVC, Acrylic, wood,composite board plywood,two-color board (ABS) and other non-metals,and also can carve soft metal surfaces such as gold, silver, copper, aluminum, and lead.

(can not work on steel products)
