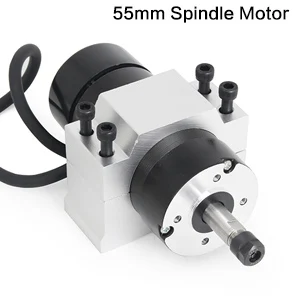

400W Brushless CNC Spindle Motor Kit 48VDC ER8 & 600W Brushless Motor Driver Without Hall & 55mm Mount Clamp

Good News: We have warehouse in some countries, check as bellows

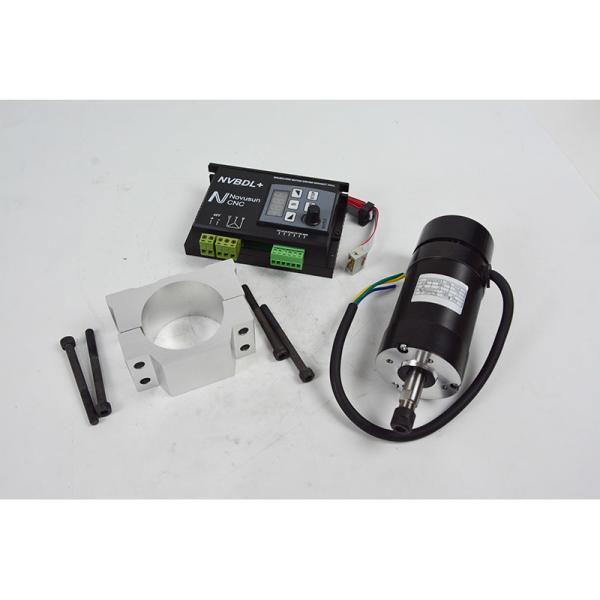

Package include:

1 x 600w Brushless driver 24-60V/DC without hall

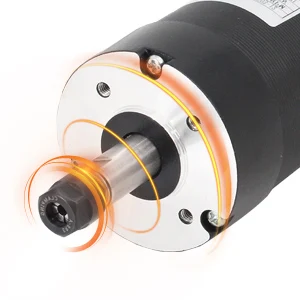

1 x 400w Brushless spindle motor ER8 without hall

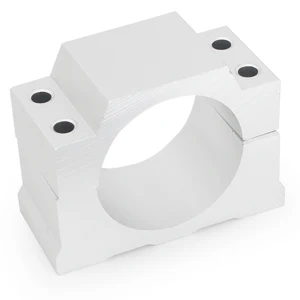

1 x 55mm Motor mount Clamp

English user manual will send by mail.

I. Products brief introduction

This brushless driver is without hall.

It can be used to engrave metal or non-metal and other materials.

II. Specification feature

Motor:

1)Power: 400W

2) Input Voltage: 48V

3) Rotating speed: 12000 R/Min

4) Torque: 0.45 N.m

5) Collet: ER8

6) Insulation resistance: > 2ohms

7) Dielectric strength: 400V

8) Diameter: 55mm

9) Chuck portion length: Arbor parts 35mm, (including the nut and sandwich 43mm)

10) Part chuck diameter: 16mm

11) Total motor length: 172mm (comprising gripping parts and motor)

12) Spindle Weight: 1.1KG

13) Spindle runout: about 0.01-0.03.

14) Mount: Product outline dimension is 118*76*33mm, as picture 1-7 shows. The two installing holes size is 110mm

Driver:

1) High performance, low prices

2) DSP main control module

3) No current passing when no movement

4) Voltage range 24VDC-60VDC

5) Demountable panel

6) Maximum driver power 600W

7) 3 debugging ways: Panel potentiometer, external voltage signal, external PWM Signal

8) Maximum driver motor running speed 12000R/Min.

9) Speed testing port for user to inspect the real speed.

10) Internal over-voltage, over-current and stalling inspection

11) Input signal TTL compatible

III. Connection interface definition

NVBDL + without Hall feedback,other parts are same as NVBDH+.

NVBDH+ and NVBDL+ connection table as table 2-1.The green color Hall signal cable is only for NVBDH+.

3.1 NVBDL+ connection

NVBDL+ is the driver without Hall feedback,so the connection is easier than NVBDH+.Here we also introduce 3 control modes.

1. NVBDL+ panel button speed control+ Panel start/stop control

NVBDL+

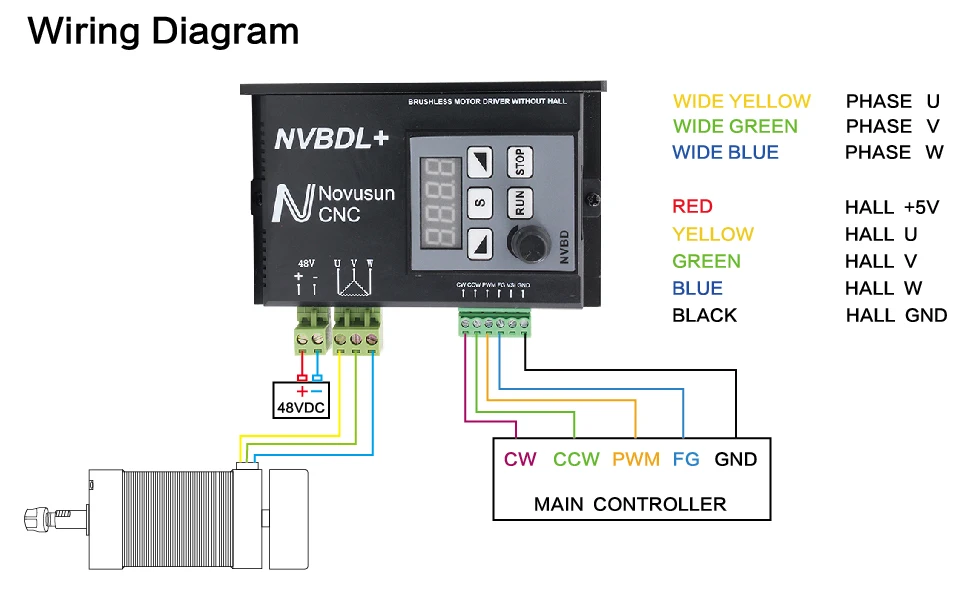

panel button speed control+ Panel start/stop control connection pls see
the picture. In this mode,if the control system need to collect motor
speed data,then FG,GND port on NVBDH+ need to connect with signal
collection port,GND port on controller.Cable thick yellow,thick green
and thick blue is the UVW phase of the motor,they connect with UVW
port on the drivers respectively.No hall connection.
