Package include:

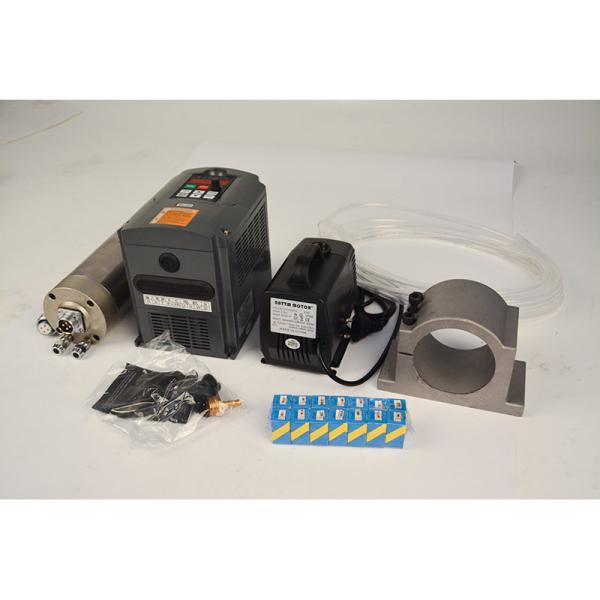

1 x 1.5KW ER11 Water-cooled spindle motor(220V,400Hz,24000rpm)

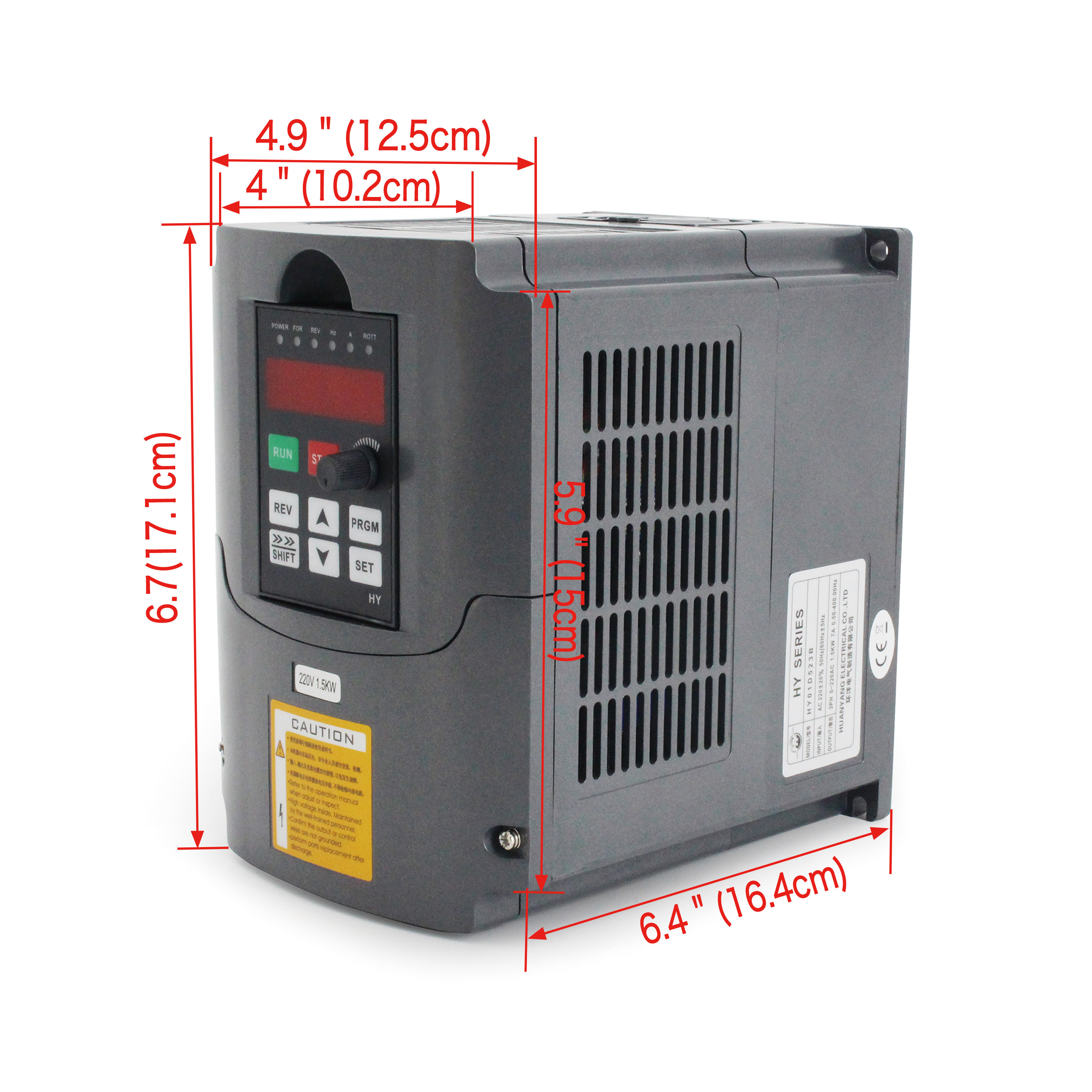

1 x1.5KWInverter VFD
1 x 80mm cast aluminium bracketclamp
1 x 75mm Water pump
6M Water pipes
1set ER11 collet (1~7mm)13Pcs
English manual for the inverter will send to your email.
1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND
Specification:
Material:Stainless Steel
Size:Φ80x188mm
Power:1.5Kw
Voltage:220VAC
Current:5A
Frequency:0-400Hz
Speed:10-24000rpm
Cooling:Water-cooling
Accuracy:0.01
Runout off:Less than 0.02mm
Bearing Lubrication:Grease
Collet size:ER11
Bearings:3 bearings (C7002x3),P4 class
Weight:4.6kg
Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively connected to
the inverter output end of the (U, V, W), 4 ground wire this interface
must be safe ground.
Main application:Wood, Aluminum, Stone, metal, glass, PVC industry
2. 1.5kw Inverter VFD
ProductFeature:
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various
control technique by both synchronization and non-synchronization,
dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;
Tech parameters:
1) Input Voltage: 220V(+/-15%)
2) Output Voltage:220V(+/-15%)
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased
Specification
| Series | HY inverters |
| Control Mode | SPWM |
| Input Power | 380V class:380V(+/-15%);220V class:220V(+/-15%) |
| 5-Digits Display & Status Indicator Lamp | Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc. |
| Communication Control | RS-485 |
| Working Temperature | -10~40 Celsius Degrees |
| Humidity | 0-95% Relative Humidity(without dew) |
| Vibration | Below 0.5G |
| Frequency Control | Range | 0.1~2500.0Hz |
| Accuracy | Digital: 0.1%(-10~40 Celsius Degrees); Analog: 0.1% (15Celsius Degrees---45Celsius Degrees) |
| Setting Resolution | Digital: 0.1Hz; Analog: 0.1% of max. Operating frequency |
| Output Resolution | 0.1Hz |
| Operator Setting Method | Press directly keys to set. |
| Analog Setting Method | External Voltage 0-5V,0-10V,4-20mA,0-20mA. |
| Other Functions | Frequency lower limit, starting frequency, stopping frequency, three skip frequencies can be respectively set. |
| General Control | Ramp Control | Selectable 4-speed steps ramp-up and -down time (0.1-6500s). |
| V/FCurve | Set V/F curve at will. |
| Torque Control | Torque increase settable by max. 10.0%. The starting torque can reach 150% at 1.0Hz. |
| Multi-Inputs | 6
multi-function input terminals for 8speed steps control, program
operation, switching of 4-speed Ramp, UP/DOWN function, counter,
external emergency stop and other functions. |
| Multi-Outputs | 5
multi-output for displaying of running, zero speed, counter, external
abnormity, program operation and other information and warnings. |
| Other Functions | Auto
Voltage Regulation(AVR), Decelerating Stop or Coasting Stop, DC
Braking, Auto Reset and Restart, Frequency Track, PLC Program Control,
Traverse Control, Drawing Control,Auto Energy Saving, Carrier Adjustable
(Up to 20KHz), etc. |
| Protection Functions | Overload Protection | Electronic relay protection motor drive Drive(for constant torque 150% per min. for the kinds of fan 120% per min.) |
| FuseProtection | When the fuse breaks, the motor will stop. |
| Over-voltage | 220V class:DC Voltage >400V 380V class:DC Voltage >800V |
| Under-voltage | 220V class:DC Voltage <200V 380V class:DC Voltage <400V |
| Restart After Instant Stop | Restart with Frequency Track after Instant Stop |
| Stall Protection | Stall protection in ramp operation |
| Output Short Circuit | Electrical circuit protection |
| Other Functions | Fin
over-heat protection, restriction of reverse running, direct start
after power on, fault reset, parameter lock PID, one-drive-more, etc. |
3.80mm cast aluminium bracket

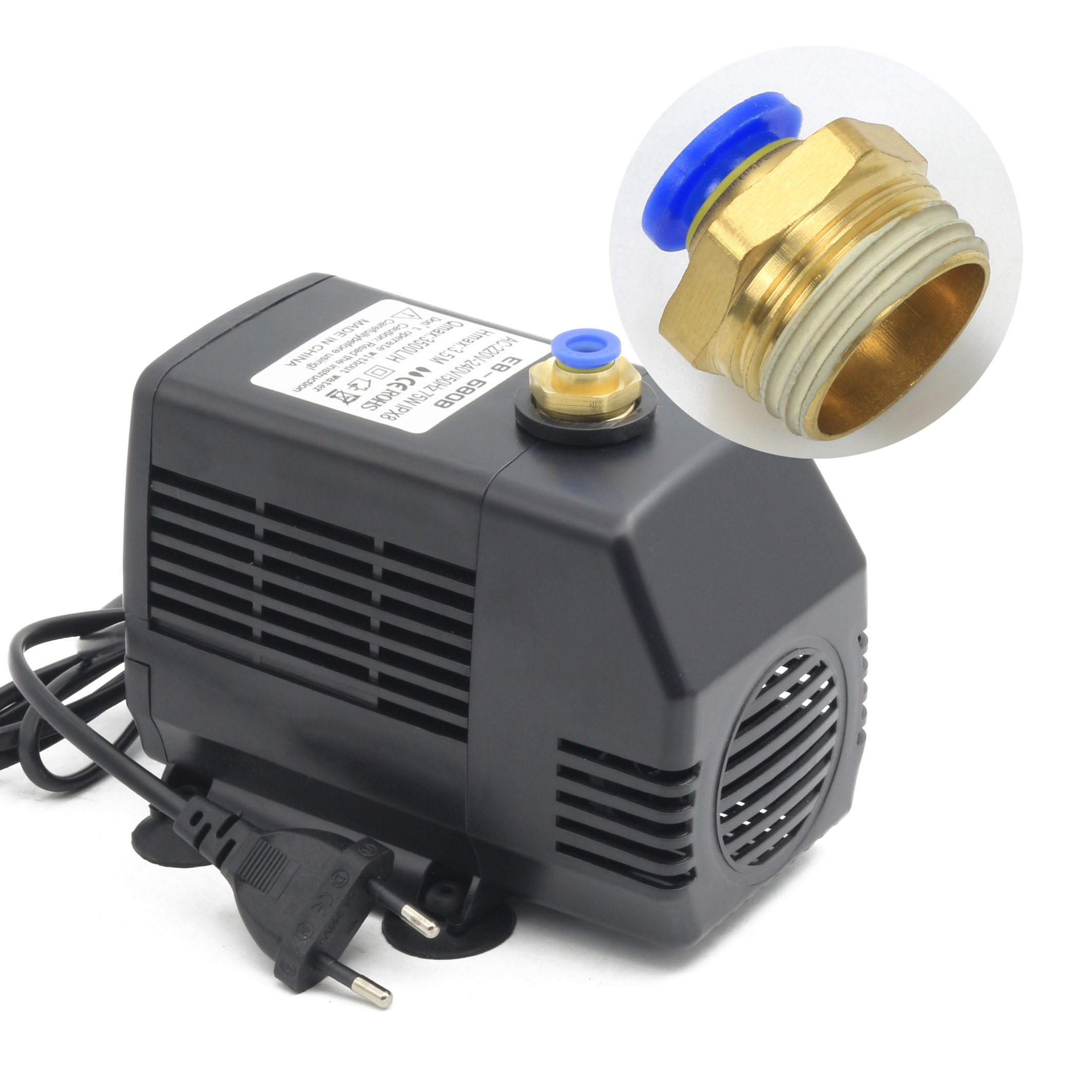

4. 75W CNC spindle motor water pump 3.2m 220VAC
Specification:
Pump length:3.2m
Voltage:220-240VAC
Power:75W
Flow:3000L/H
Size:150x80x140mm
Water nozzlediameter:6mm
Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too
