2.2kw ER20 CNC Spindle Motor Kit Air Cooled 0.01mm Accuracy With Huanyang Inverter For CNC Machine

Good News: We have warehouse in some countries, check as bellows

Package include:

1 x 2.2Kw Square Air-cooled spindle motor (ER20 220V,24000rpm,4 bearing,400Hz)

1 x 2.2KW Huanyang Inverter

2.2KW ER20 Air-cooled spindle motor

Specification:

• Material: Stainless Steel
• Power: 2.2KW
• Voltage: 220V/AC
• Current: 6A
• Frequency: 400Hz
• Speed: 24000rpm

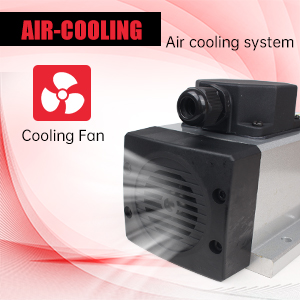

• Cooling: Air-Cooled
• Runout off: Less than 0.01mm
• Precision Tapered Bore: Less than 0.005mm
• Bearing Lubrication: Grease
• Collet Size: ER20
• Bearings: 4pcs bearing,P4 class

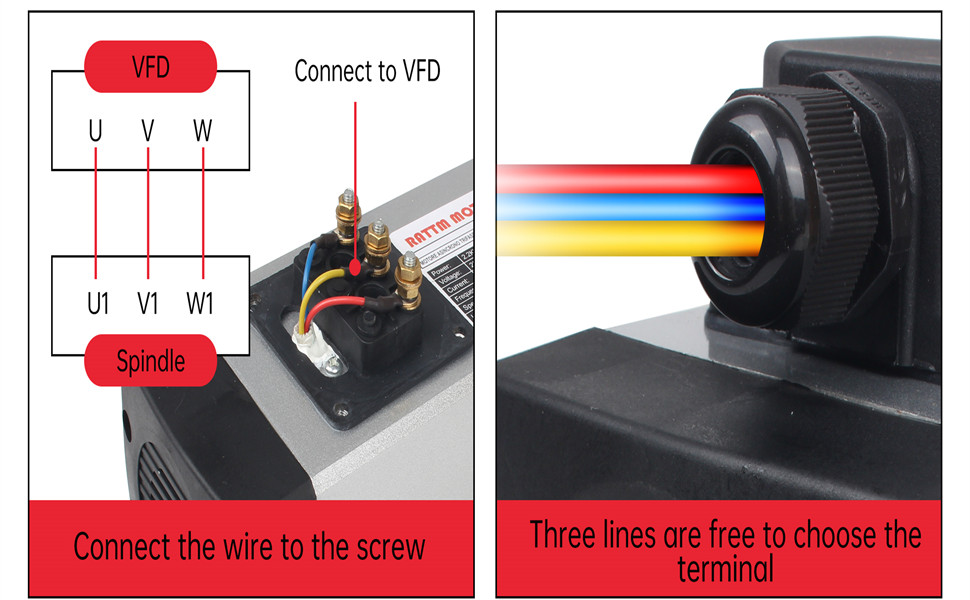

Wirings:

• spindle’s terminal"U1"connect inverter’s"U";
• spindle’s terminal"V1"connect inverter’s"V";
• spindle’s terminal "W1" connect inverter’s "W";
• the inverter’s"R","S", "T" any "2" terminal connection "220VAC"

Main application:

Engraved on wood, Aluminum, Glass, soft metal,PVC industry,also suitable for non-metallic engraving,mainly used for cnc router engraving milling cutting machine

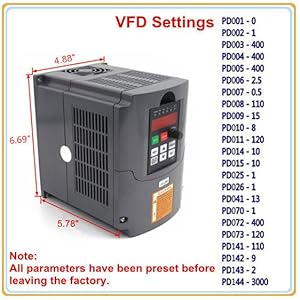

2.2KW VFD

Product Feature: 1) Input Voltage: 110V(+/-15%) , 2) Output Voltage: 100V/AC-120V/AC 3) Input Frequency: 48-63 Hz 4) Output Frequency: 0-400 Hz 5) Input Phase: 1 phase 6) Output Phase: 3 phase 7) Output Current: 20A 8) Model: HY02D211B 9) Horsepower: 3HP	Advantages 1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability; 2)Easy PLC function can realize 16 legs of speed and inverter control function; 3)With extremely strong anti-jamming capability; 4)Low output ratting torque0.5HZ-150%, low speed running ability; 5)Carrier adjustable by 16KHZ, completely soundless working environment; 6)Broad voltage working area, normal running in 100V-120V;	Inverter parameter setting 7)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability; 8)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes; 9)With perfect error protection and short circuit starting protection capability; 10)A potentiometer can be used to adjust to the rotation speed you want.(Speed range: 0-24000rpm); 11)7)supports external potentiometer control,supports mcah3 function and RS-485 communication.

Wiring:

Spindle's pin 1=U

Spindle's pin 2=V

Spindle's pin 3=W

Spindle's pin 4=Ground

Pls connect the 110V AC power supply input wires to the R & T terminals.

Definition of the VFD buttons

• UP: Progressively increase data or function codes.
• DOWN: Progressively decrease data or function codes.
• SET: Enter menus step-by-step, save setting parameters.
• PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
• FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
• SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
• Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key
