Specification:
Material:Stainless Steel
Size:Φ 80x213mm(Middle body diameter:80mmxLength:213mm)
Power:2.2Kw
Voltage:220VAC
Current:8A
Frequency:0-400Hz
Speed:10-24000rpm
Cooling:Water-cooling
Precision tapered bore:0.01mm
Runout off:Less than 0.02mm
Bearing Lubrication:Grease
Collet size:ER20
Bearings:3 bearings(C7005x2 + C7002x1),P4 class
Net Weight:5.1kg
Power supply interface:Professional
aviation Interface, Interface 1234 marked 123 respectively
connected to
the inverter output end of the (U, V, W), 4 ground wire this
interface
must be safe ground.
Main application:Wood, Aluminum, Stone, metal, glass, PVC industry

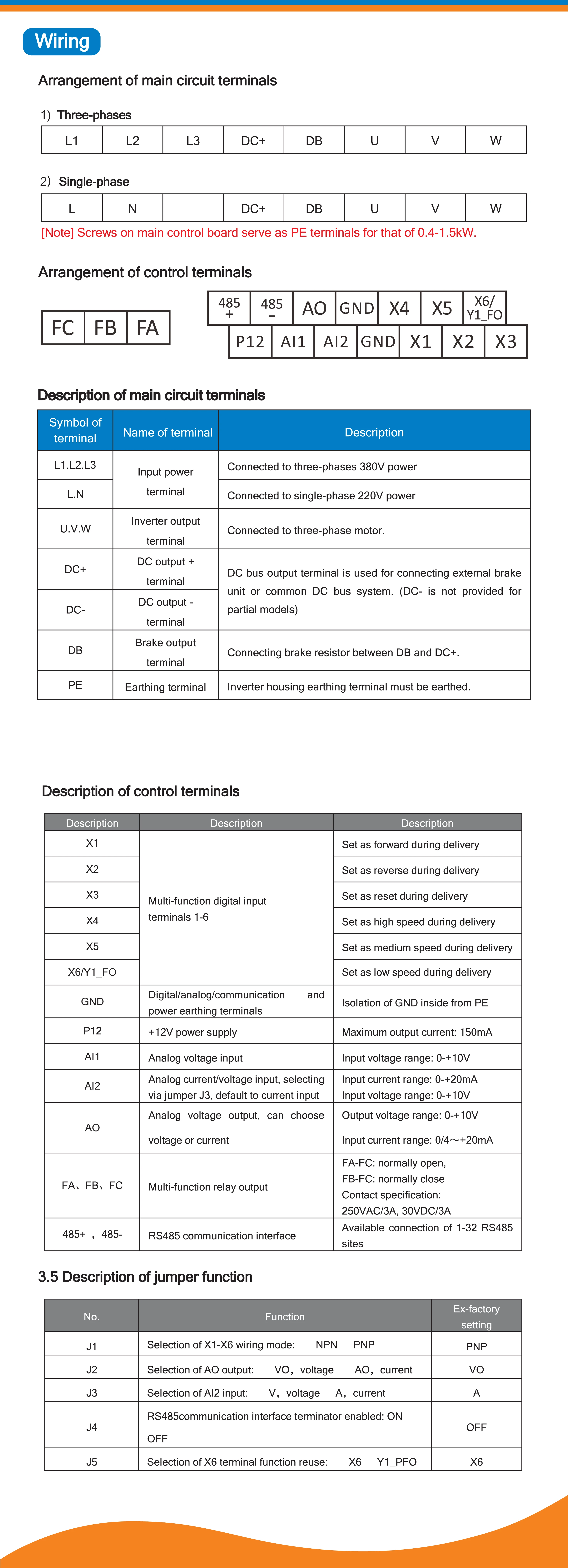

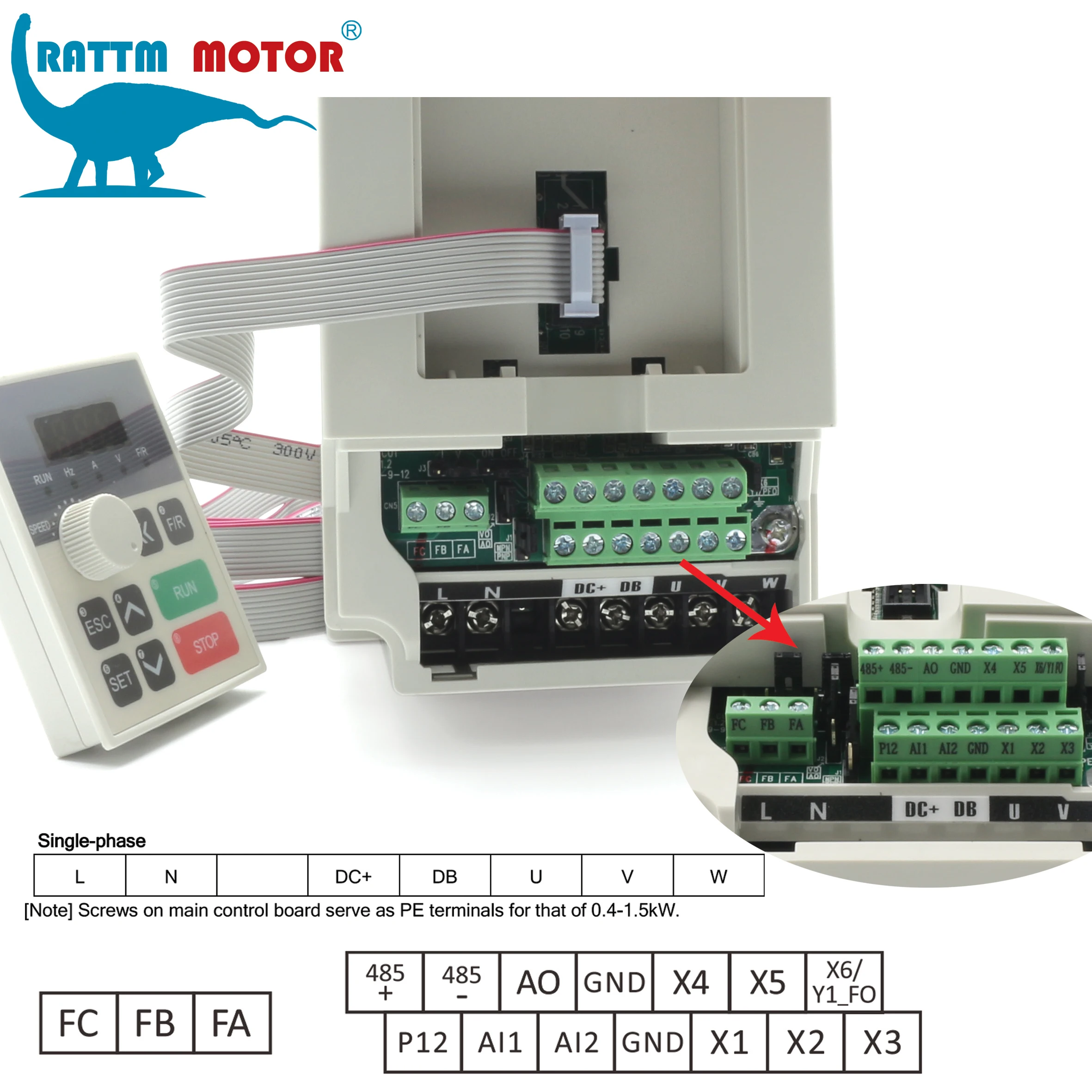

II. 2.2KW 220V Variable Frequency Drive VFD Inverter
◆Provide
a variety of fault protection functions: over-current,
over-voltage,
under-voltage, over-heat, overload, lack of equal real-time
monitoring
and protection to ensure safe operation
◆ Automatic voltage adjustment function to effectively solve the
low frequency oscillation problem of high power motor
◆ With over torque and under torque detection
◆ With instantaneous power-down retention function, it can avoid
the impact of production due to instantaneous power failure
◆With jump frequency control function, it can effectively suppress
mechanical resonance and make the system more stable and reliable.
◆ I/O terminals can be freely programmed to combine multiple
working modes according to user needs.
◆ Support multiple frequency settings: digital setting, analog
setting, PID setting, RS485 communication setting
◆ 8-stage simple PLC function, multi-speed control and PID control
◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%
◆Two speed control modes: no PG vector control (SVC), V/F control
Input Voltage:220V(+/-15%)
Output Voltage:220VAC
Input Frequency:50-60 Hz
Output Frequency:0-1000 Hz
Input Phase:1 phase
Output Phase:3 phase
Warranty:1 year from the date you purchased
3.80mm cast aluminium bracket
4. 75W CNC spindle motor water pump 3.2m 220VAC
Specification:
Pump length:3.2m
Voltage:220-240VAC
Power:75W
Flow:3000L/H
Size:150x80x140mm
Water nozzlediameter:6mm
Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and
5.5kw too
5.1 Set (1-13mm)14Pcs ER20 Collets
